33x30m warehouse building roof joint view is given in this file

Description

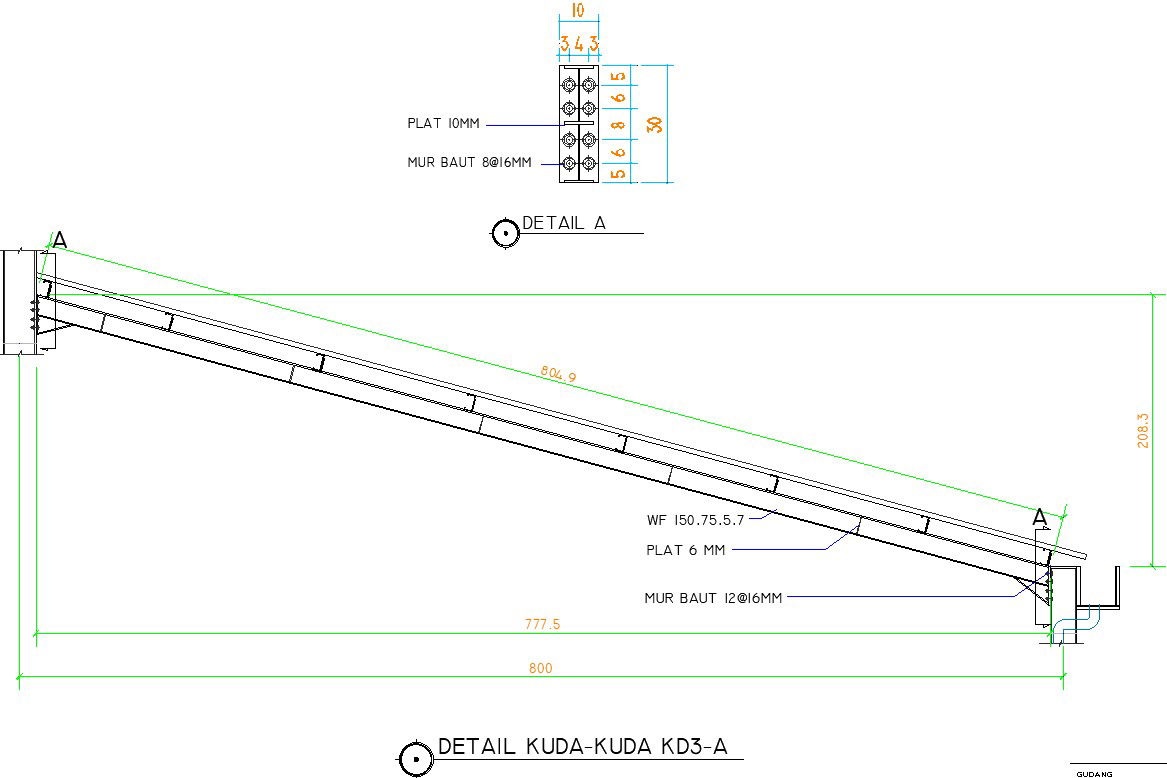

33x30m warehouse building roof joint view is given in this file. The distance between each purlin is given. 6mm plates were used. 10mm end plat is provided. For more details download the AutoCAD drawing file from our website.

File Type: DWG File ID: 250128

Uploaded by:

Pavithra
India

Download Add to library
