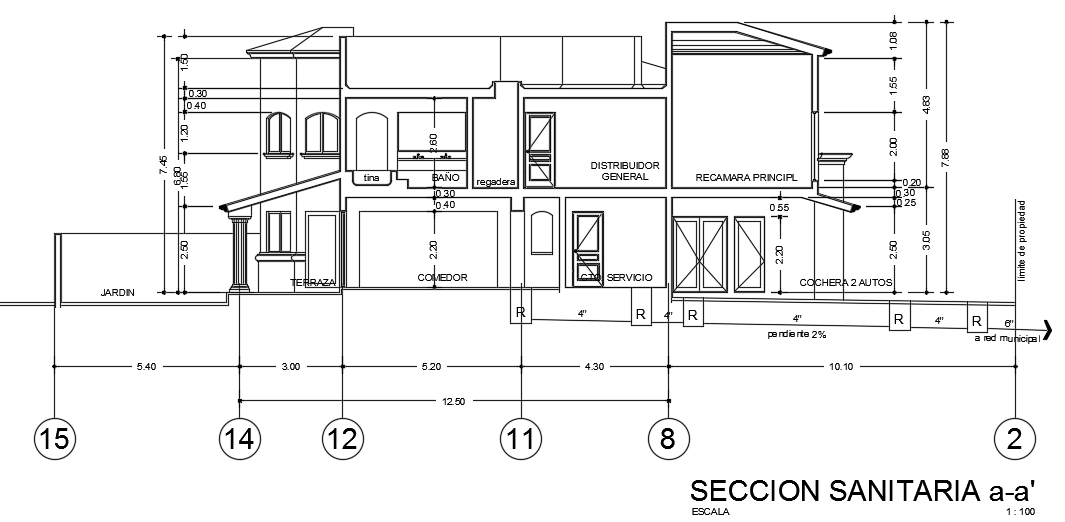

A section view of the 15x28m house building is given in this file


Description

A section view of the 15x28m house building is given in this file. The total height of the building is 7.66m. This is two story house building. On this ground floor, garage, garden, kitchen, dining area, bar, studio, store room, and open terrace is available. On this first floor, the living, master bedroom with the attached bathroom & bathtub, kid’s room with the attached toilet, guest room with the attached toilet, and open is available. For more details download the AutoCAD drawing file from our cadbull website.




File Type: DWG File ID: 250372
