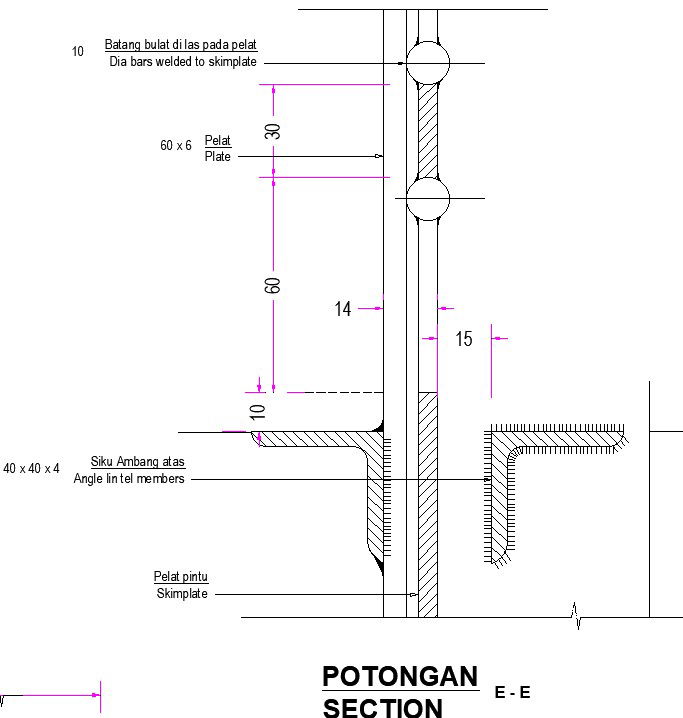

Gate door section 2d AutoCAD model view is given in this file

Description

Gate door section 2d AutoCAD model view is given in this file. Angle lintel member, skin plate, and plates are mentioned. Dia bars are welded to the skin plate. The dimension of the angle lintel member is 40x40x4mm. For more details download the AutoCAD drawing file from our website.

File Type: DWG File ID: 251252

Uploaded by:

Pavithra
India

Download Add to library
