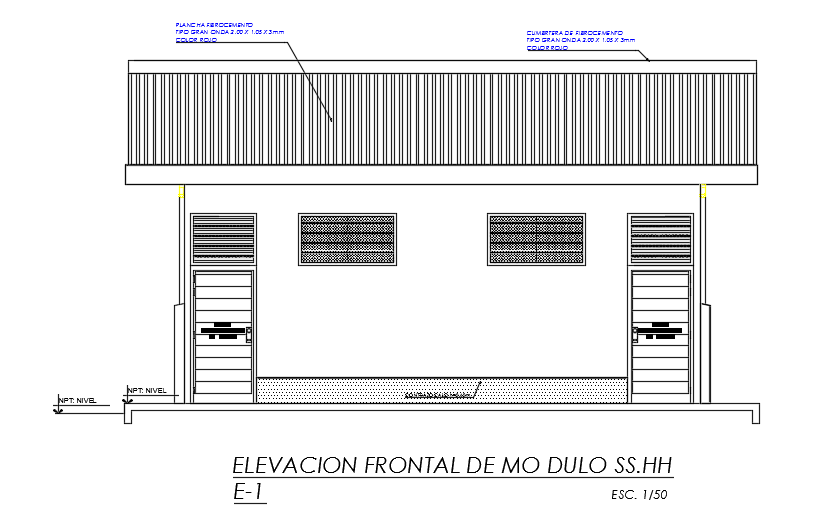

The front elevation view of the 8x7m college toilet building AutoCAD 2D drawing
Description
The front elevation view of the 8x7m college toilet building AutoCAD 2D drawing is given in this model. In this, gent’s and ladies toilets are provided. The total height of the toilet building is 5.39m. In ladies toilet, 8 water closets are available and 5 wash basins are available. On gent’s toilet, 5 water closet, and 5 wash basins are available. For more details download the AutoCAD drawing model from our cadbull website. Thank you for downloading the AutoCAD files from our cadbull website.
