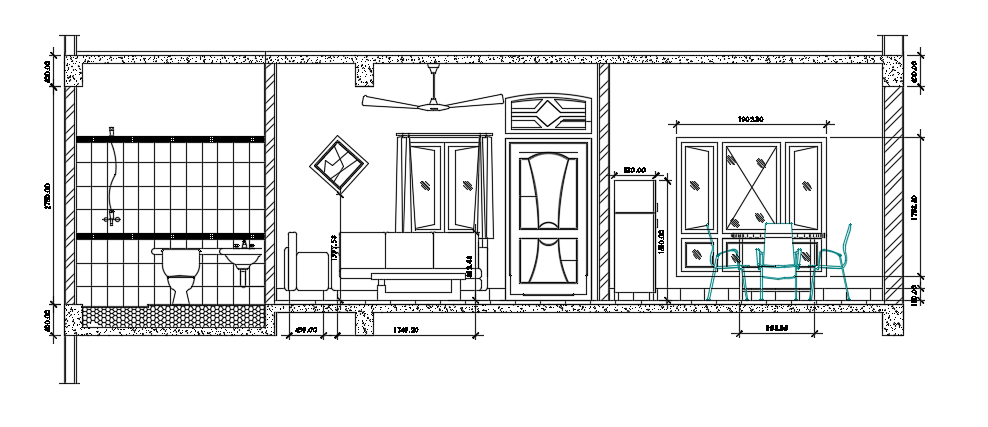

The front cut section view of the 25x20m first floor apartment house building drawing


Description

The front cut section view of the 25x20m first floor apartment house building drawing is given in this file. This is G+ 5 apartment house building. On each floor, four houses are available. Each house consists of the living room, kitchen, dining area, master bedroom with the attached toilet, kid’s bedroom, and common bathroom is available. For more details download the AutoCAD drawing model is given in this file. Thank you for downloading the AutoCAD drawing model from our cadbull website.




File Type: DWG File ID: 252126

Uploaded by:


Meera
India
