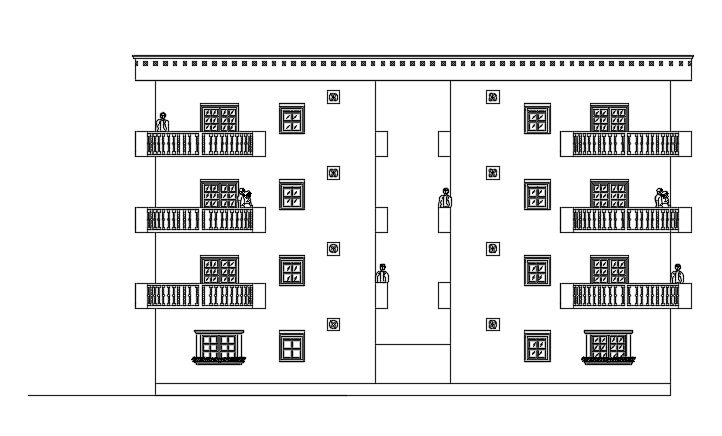

The left side view of the 27x20m apartment house building 2d AutoCAD drawing is given


Description

The left side view of the 27x20m apartment house building 2d AutoCAD drawing is given in this file. This is G+ 3 apartment house building. On this ground floor plan, four houses are available. These houses are consists of the living room, kitchen, utility area, dining room, master bedroom with the attached toilet & balcony, kid’s bedroom with the attached balcony, and common bathroom. On this second floor plan, four houses are available. These houses are consists of the living room, kitchen, utility area, dining room, master bedroom On this third with the attached toilet & balcony, kid’s bedroom with the attached balcony, and common bathroom. floor plan, four houses are available. These houses are consists of the living room, kitchen, utility area, dining room, master bedroom with the attached toilet & balcony, kid’s bedroom with the attached balcony, and common bathroom. For more details download the AutoCAD drawing model from our cadbull. Thank you for downloading the AutoCAD files from our cadbull website.
