Underground pipe line connection detailing.

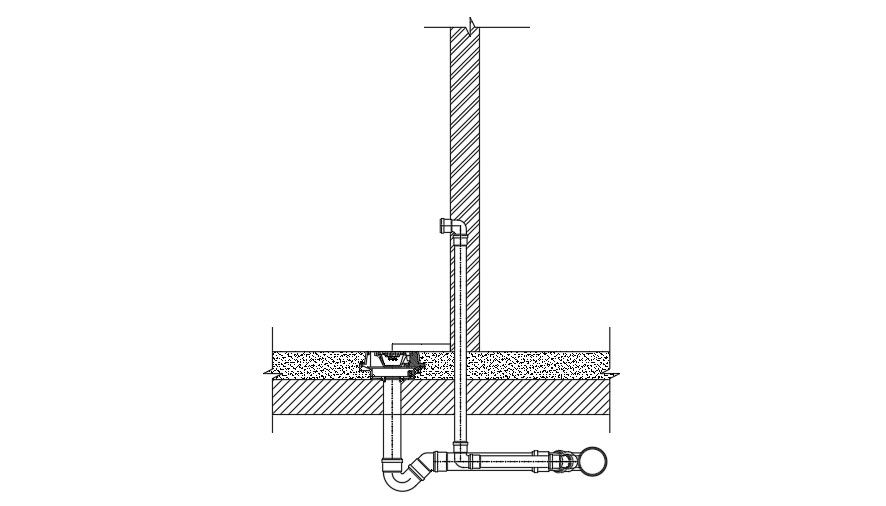

This Architectural drawing is underground pipe line connection. undergrounds pipeline systems (also known as buried pipelines) are being increasingly used for conveying irrigation water on the farm. The main advantages of these systems are – saving of land, elimination of seepage losses, and relatively little maintenance need. Lined underground pipe is designed to support external hydrostatic loads due to groundwater as well as to withstand the internal pressure in spanning across specific holes in the original pipe wall.
