Sewage Pump line details.

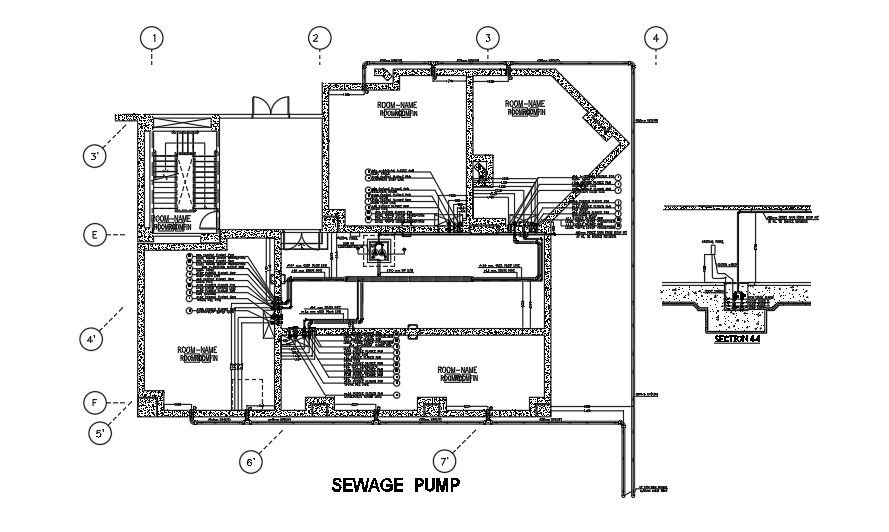

This Architectural Drawing is plan of sewage pump line details of a building. This is a 5 story building. In this drawing the plan shows the pipe line details like Sewage pumps are centrifugal pumps, with special design enabling solids to pass without clogging the pump. When the pump is turned on, the motor starts to rotate the impeller, creating the pressure that pushes water into the impeller and goes into the discharge pipe. The sewage pump is powered through a 10-25 ft. for more details and information download the drawing file.
