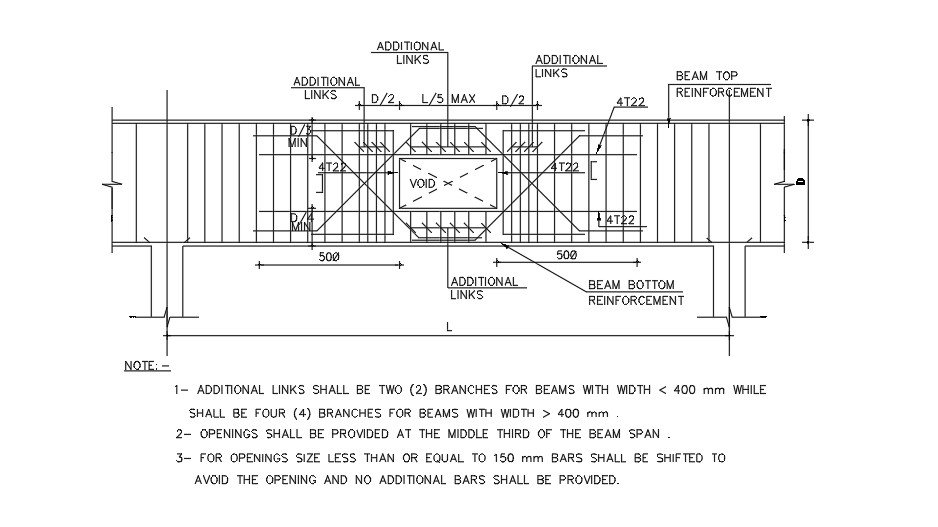

This Architectural Drawing is Section of Beam detailing. In this drawing additional link shall be two(2) Branches for Beams with Width < 400 mm while shall be four(4) branches for beams with width > 400mm. Openings shall be provided at the middle third of the beam span. For opening size less than of equal to150 mm bars shall be shifted to avoid the opening and additional bars shall be provided. For more information and detail download the drawing file.
