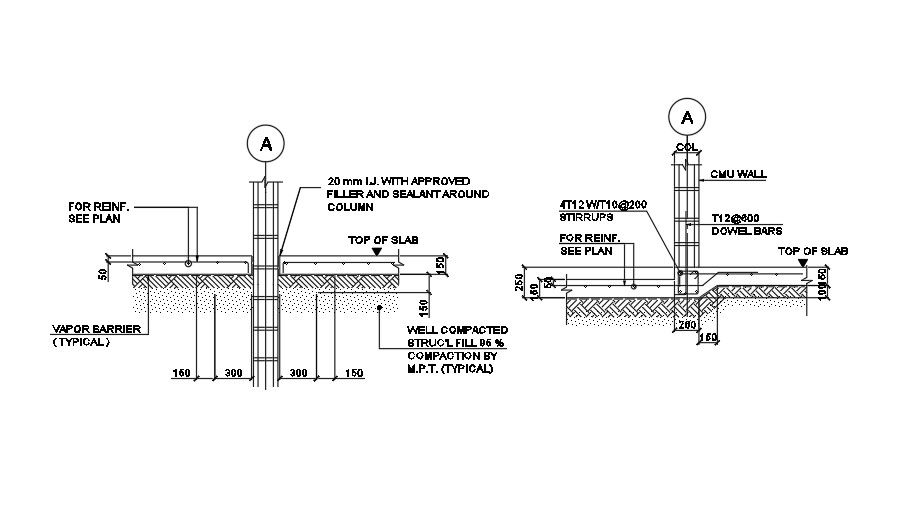

Column Detail including steel structure.

This Architectural Drawing is Column Detail Including steel structure. The steel structure is a metal structure that is made of primary steel segments interface with one another to convey stacks and give full inflexibility. Structural steel is steel construction material created with a particular shape and synthetic structure to suit a project's applicable specifications.  A column or pillar in architecture and structural engineering is a structural element that transmits, through compression, the weight of the structure above to other structural elements below. In other words, a column is a compression member. The most significant point in column installation is the connection between foundation and column and splices between columns.desire Regarding foundation to column joints, base plates are welded to the end of columns. The most d shape of base plate is square and rectangular shape. For more details and information download the Drawing file.
