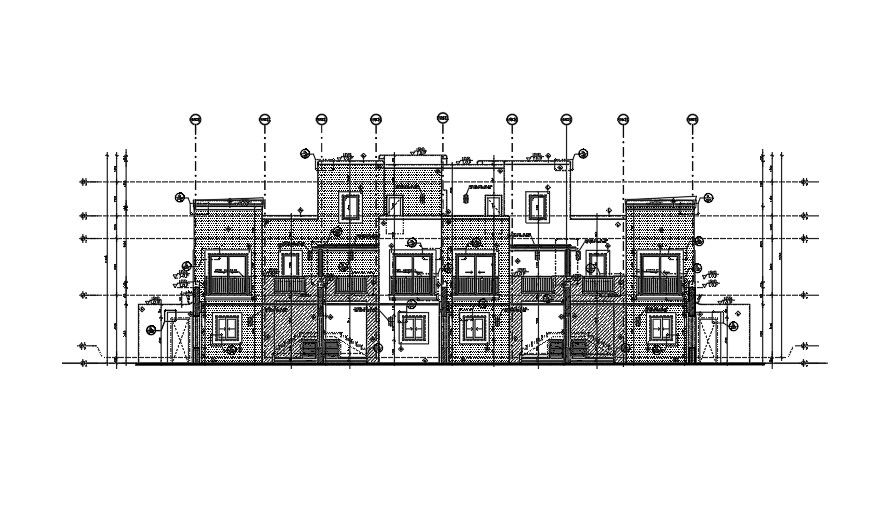

This Architectural Drawing is Back elevation of a residential building. Rear elevation – This is the back of the house, usually facing the garden. Eaves - The part of a roof that meets or overhangs the walls of the building. Property boundary – This is the line on a housing plan which divides one house from another, including the garden. Things To Keep In Mind For Elevation Design. The main aspects to keep in mind while designing your house front elevation is to plan the open spaces, the covered spaces and the elevation design of each floor if the house has more than one level. For more information download the drawing file.
