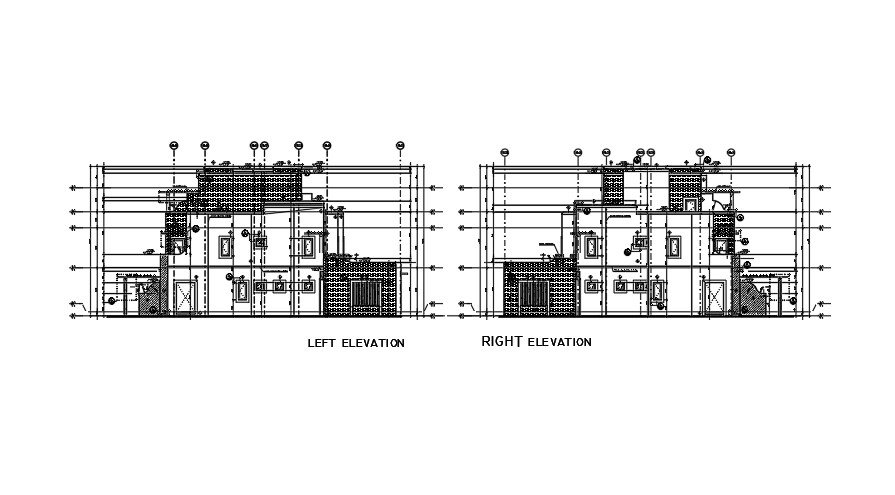

This Architectural Drawing is Front, back and side elevation of apartment. In architecture, an elevation is the front, back, or side of a building, or a drawing of one of these. [technical] ...the addition of two-storey wings on the north and south elevations. Synonyms: side, back, face, front More Synonyms of elevation. An elevation drawing is a view of a building seen from one side. It is the two dimensional, flat, representation of one facade. It displays heights of key features of the development in relation to a fixed point such as natural ground level. This is an elevation view. An elevation is a view from the side of an object, when drawing interior elevations, this would represent one of the walls. This would include any windows or doors as well as any built-in furniture that is in direct contact with the wall. This is a section view. For more information download the Drawing file.
