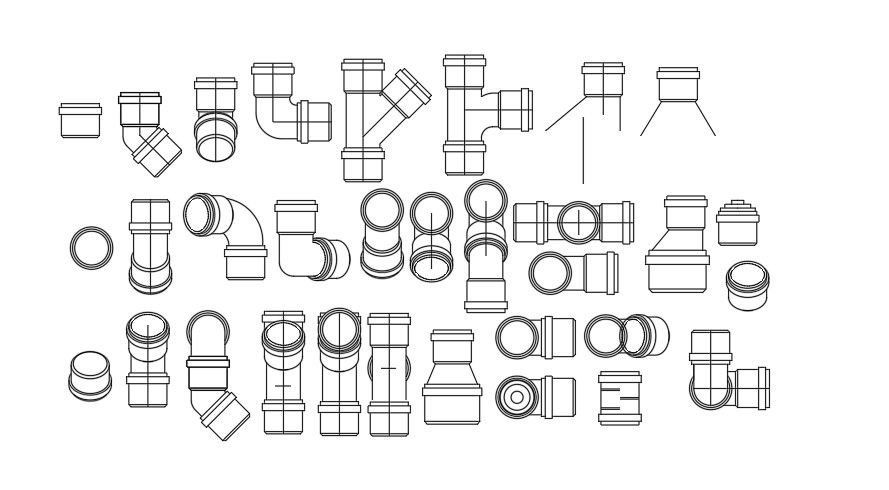

This Architectural Drawing is about Pipes. Pipes come in several types and sizes. They can be divided into three main categories: metallic pipes, cement pipes and plastic pipes. Metallic pipes include steel pipes, galvanised iron pipes and cast iron pipes. Cement pipes include concrete cement pipes and asbestos cement pipes. A pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow — liquids and gases (fluids), slurries, powders and masses of small solids. There are five main types of plumbing pipe materials that are still in use today: copper, galvanized steel, polyvinyl chloride (PVC), acrylonitrile butadiene styrene (ABS), and cross-linked polyethylene (PEX). Chlorinated polyvinyl chloride (CPVC) is also used. Parts of a pipe include the (1) bowl, (2) chamber, (3) draught hole, (4) shank, (5) mortise, (6) tenon, (7) stem, (8) bit (or mouthpiece), (9) lip, and (10) bore. For more details and information download the drawing file.
