10x12m north facing first floor electrical cad drawing
Tags
#10x12m house plan first floor electrical layout#10x12m house plan#10x2m home plan#10x12m home design
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

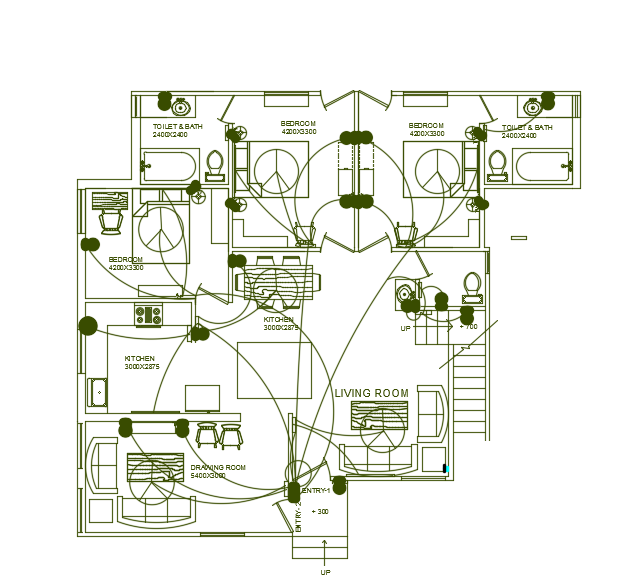

10x12m north facing first floor electrical cad drawing is given in this file. 6A light plug is provided at 8” level. 16A power plug is provided at the level of 8” and 3”. Computer point is provided at the level of 3”. Telephone point is provided at the level of 3”, and 8”. Two way switch, switch board, exhaust fan unit, bracket light, computer point, distribution point, TV point, AC socket point, ceiling fan point, and tube light points are provided.
Uploaded by:
Meera
