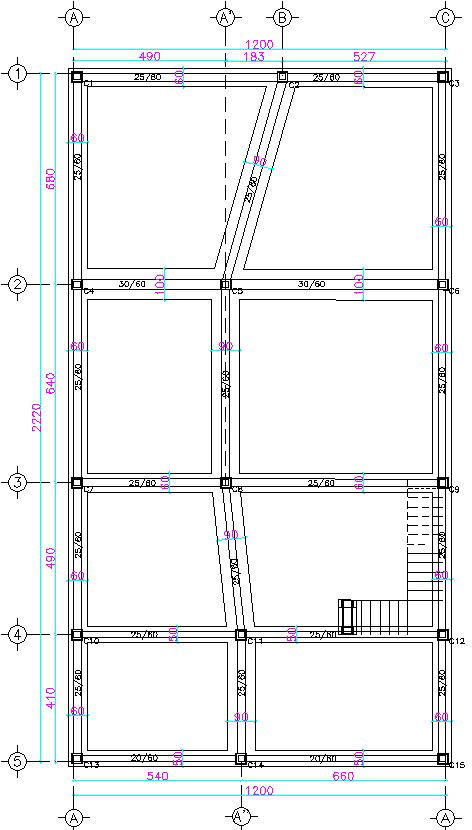

This Architectural Drawing is Foundation Detail plan with detailing. Layout of foundation plan. Layout of foundation plan : After determining the width and depth of foundation, a drawing showing the width of foundations of various walls is prepared. It is known as foundation plan. The foundation plan is a plan view drawing, in section, showing the location and size of footings, piers, columns, foundation walls, and supporting beams. The foundation plan is drawn from information presented on the floor plan, plot plan, and elevation plan drawings. The plan which contains column size & position is called a column layout plan . The column layout plan is very important for a Structure. Because without column layout it's impossible to locate the actual location of the structure. For more details and information download the drawing file.
