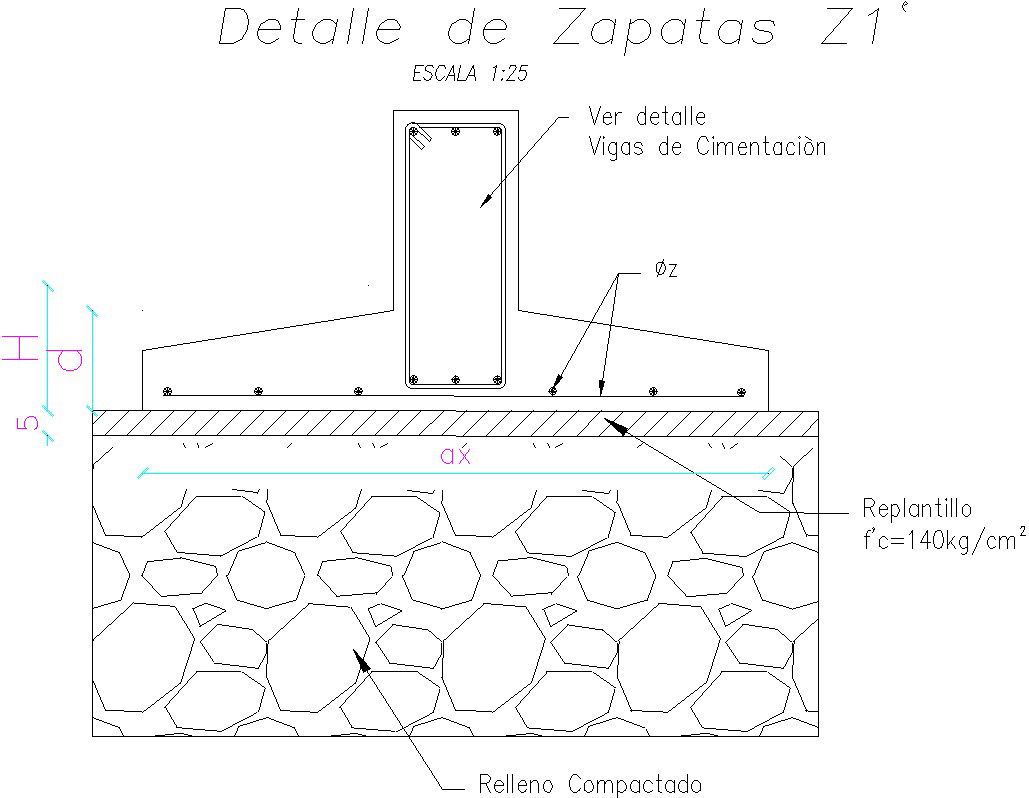

Detail Drawing of foundation and column.

This Architectural Drawing is Section of Foundation drawing of column with detailing. The foundation base of the column is large to support the column of the building. This type of foundation distributes the weight placed on the column through a more extensive area, thus preventing the columns from sinking into the ground. The foundation plan is a plan view drawing, in section, showing the location and size of footings, piers, columns, foundation walls, and supporting beams. A foundation plan ordinarily includes the following: • Footings for foundation walls, piers, and columns (hidden lines) Column Footing is also famous as independent footing. An independent footing is one which is provided under a column or either similar member for distributing concentrated load in the form of uniformly loads on the soil below. The footing may be square, rectangular or circular in plan. For more details and information download the drawing file.
