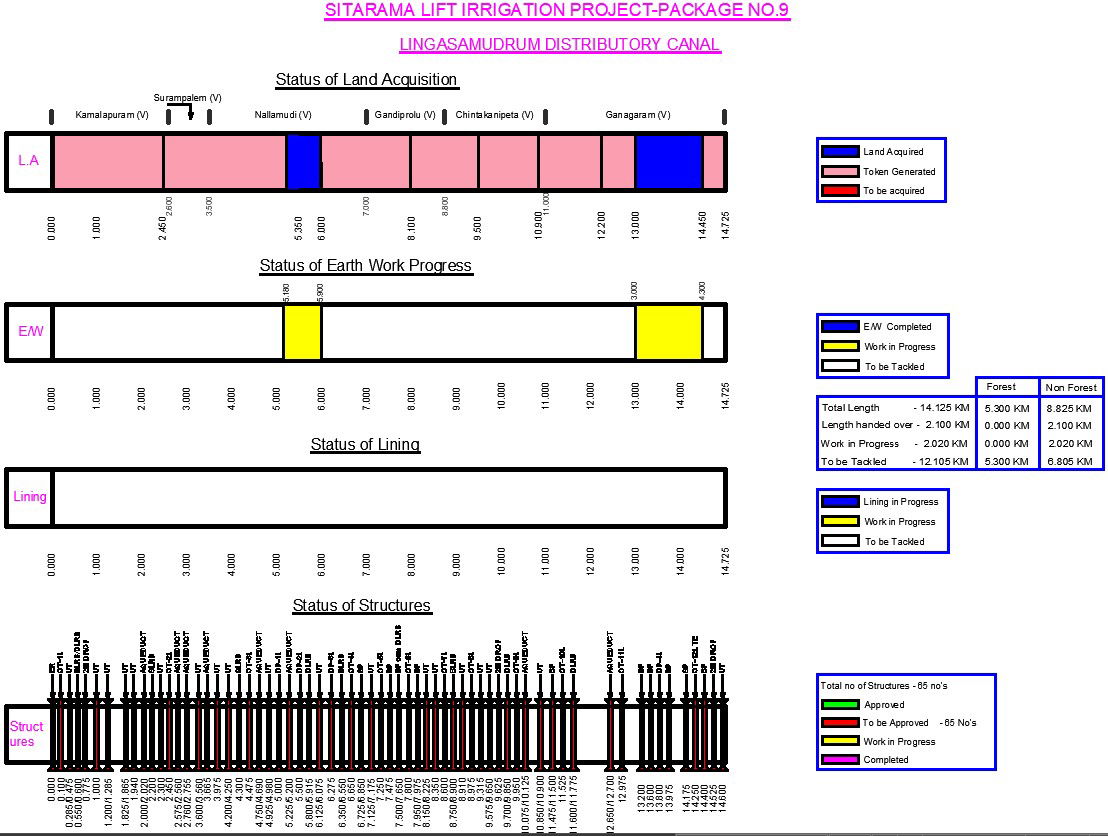

This architectural drawing is Different Status of Lift irrigation project with detailing. Lift irrigation is a method of irrigation in which water instead of being transported by natural flow (as in gravity-fed canal systems) requires external energy through animal, fuel based or electric power using pumps or other mechanical means. The lift irrigation method is used both for watering of a certain area as a whole and for water application to particular elevated sites in the area of gravity irrigation (at that water is lifted from river or from irrigation canals). The main structural components on lift irrigation systems are (i) intake structure, (ii) intake pipe, (iii) jack well/pump well, (iv) pump house, (v) rising main and accessories, (vi) delivery chamber, (vii) distribution chamber, and (viii) on-farm water distribution system. For more details and information download the drawing file.
