Air Conditioner front side elevation in detail.

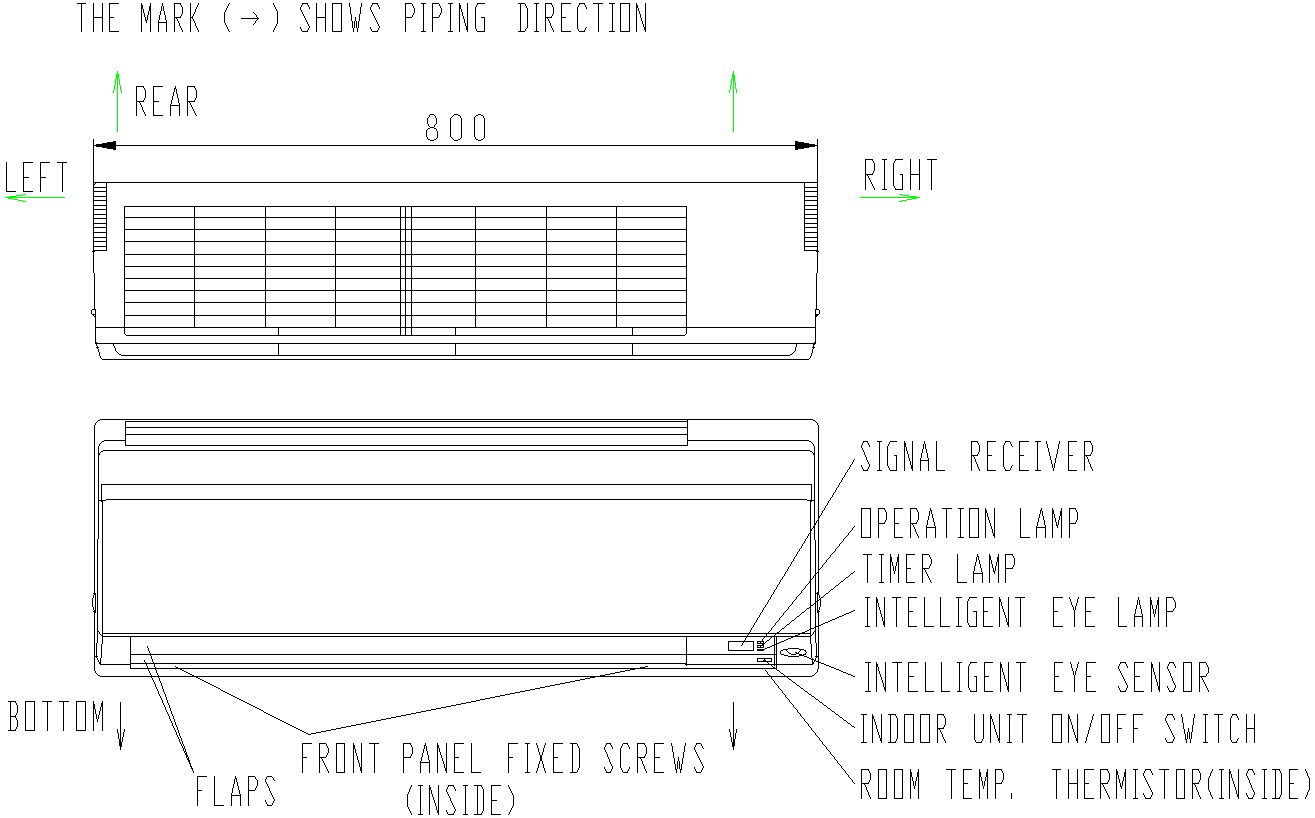

This Architectural Drawing is of Air Conditioner front side elevation in detail. In this Drawing, the signal receiver, operation lamp, timer lamp, Intelligent Eye Lamp, Intelligent Eye sensor, Indoor unit ON/OFF Switch, Room Temp. Thermistor(inside). The Mark (arrow)in the drawing  shows piping direction. In a 10 ft high room, for optimum cooling, a height of 7-8 ft above the ground is recommended. This will ensure that the cool air spreads well around the room. It also ensures that the air conditioner is not too busy cooling the hot roof which only means higher electricity bill for you.  For more details and information download the drawing file.

File Type: DWG File ID: 253834
