3 SET OF COOLING TOWER FOR BASE BLOCK FOR CHILLER SYSTEM.

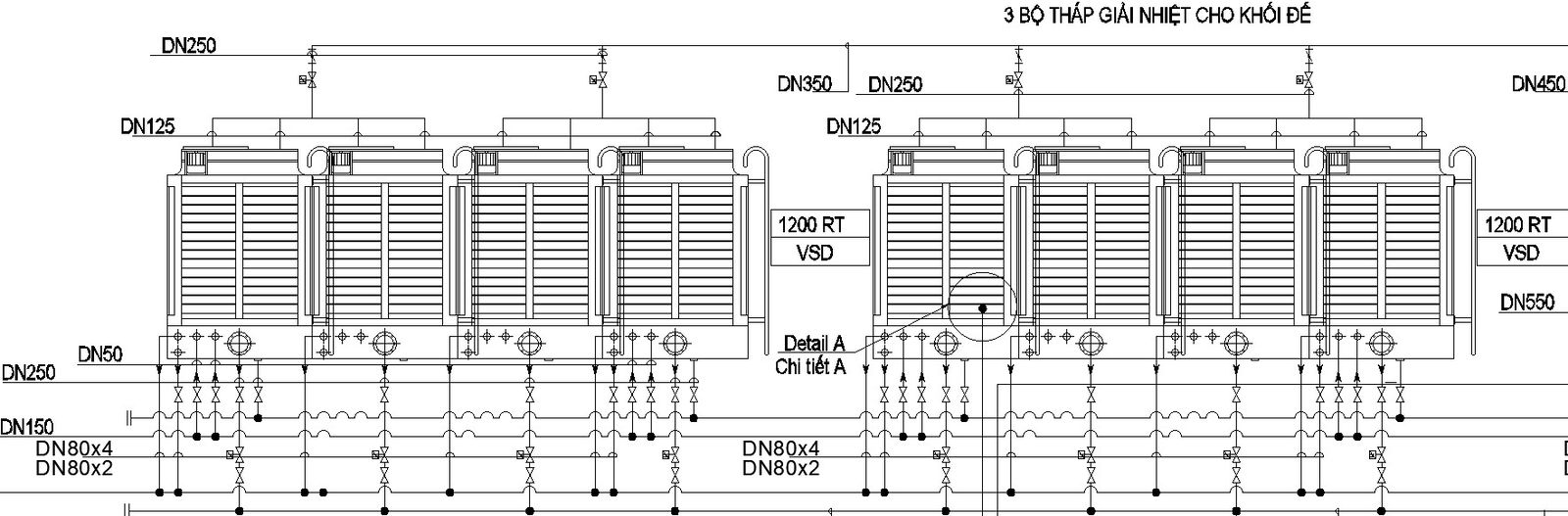

This Architectural Drawing is of  3 Set of Cooling Tower for Base Block for Chiller System. A chiller is a relatively basic system wherein heat is removed directly from the coolant before it's transferred over to the surrounding air, which is essential for the cooling process. As for a cooling tower, this system is designed to remove heat from any water that's discharged from the condenser unit. There are three main types of cooling towers that are defined by how water or air pass through them. These types include crossflow, counterflow, and hyperbolic. There are also two varieties classified solely on airflow, known as induced draft and passive draft cooling towers. Air cooled chillers will use fans to blow cool ambient air over their condenser to remove heat from the system, this type does not use a cooling tower. You can learn about this system and watch the video tutorial by clicking here. For more details and information download the drawing file.
