FIXING PLATE FOR PASSAGE BUSHINGS.

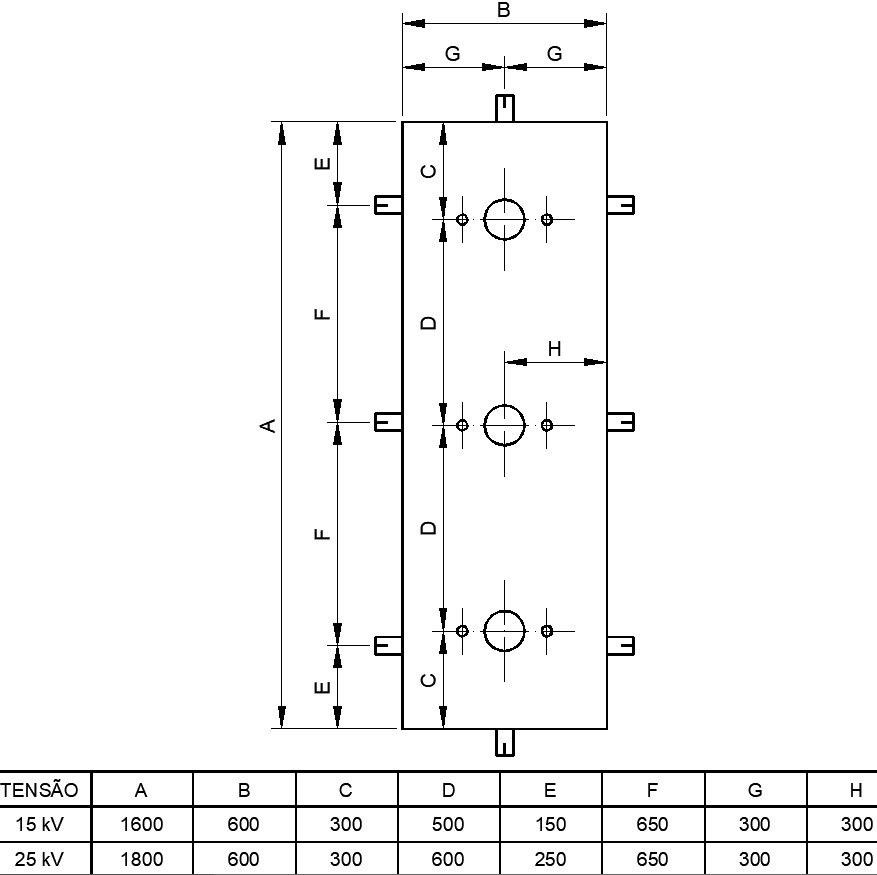

This Architectural Drawing is AutoCAD 2D drawing of FIXING PLATE FOR PASSAGE BUSHINGS. In this Drawing, MEASUREMENTS IN MILLIMETERS, PLATE THICKNESS: FOR OUTDOOR USE 4.8mm (3/16"), FOR INTERNAL USE 3.2mm (1/8"), FOR DRILLING CHECK THE TYPE OF THE PASSAGE BUSHING, THE MATERIAL MUST BE IN 1010/1020 CARBON STEEL SHEET HOT IMMERSION FOR EXTERNAL USE. FOR INTERNAL USE, EPOXY PAINTING MAY BE ACCEPTED. For more details and information download the drawing file.
