ISMB details of tunnel with dimensions
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

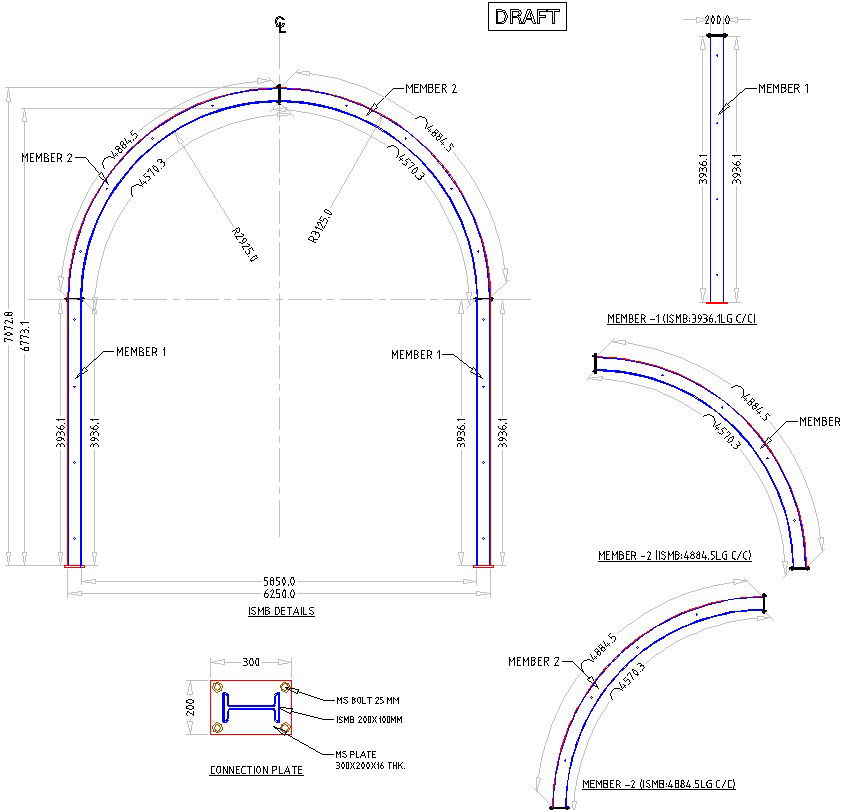

This architectural drawing is ISMB details of tunnel with dimensions . In this drawing ISMB plate details are given. There were used 25mm MS bolt. Size of ISMB is 200x100mm. Size of MS plate is 300x200x16 thick. For more details and information download the drawing file.
Tags
#ISMB details of tunnel with dimensions#ISMB details of tunnel#tunnel section#design of tunnel#shape of tunnel
