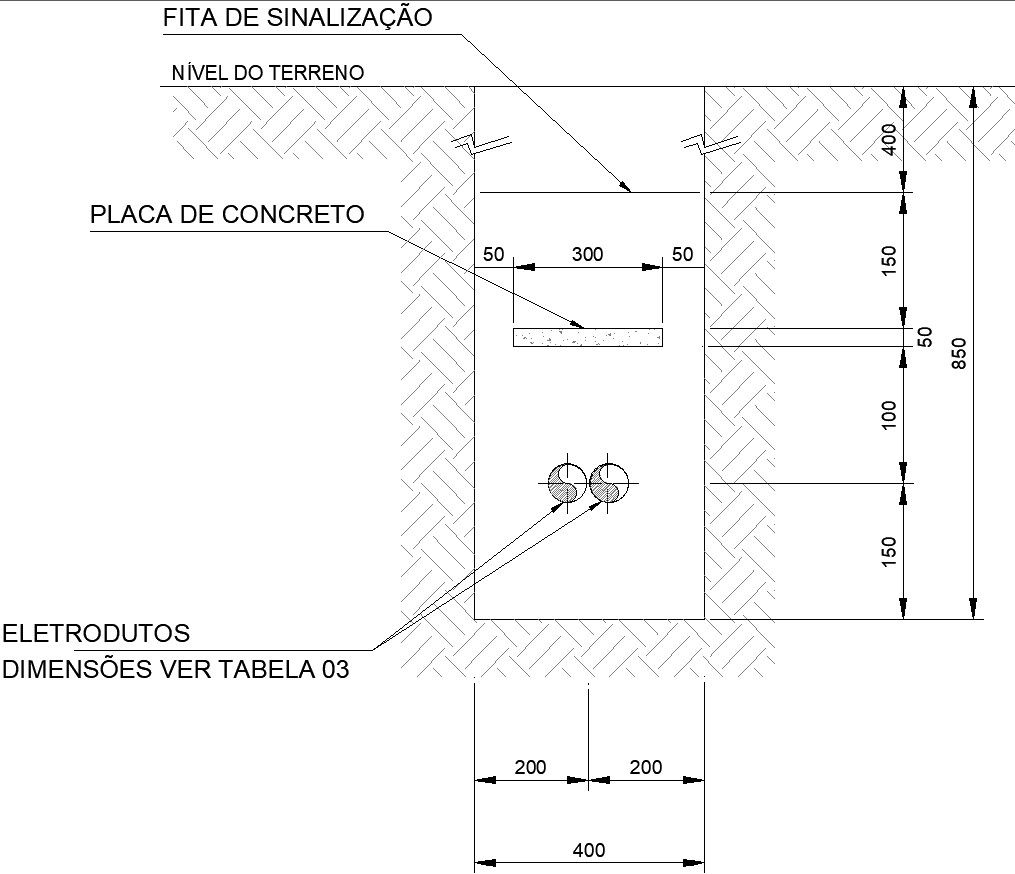

REINFORCED CONCRETE PROTECTION PLATE FOR MECHANICAL PROTECTION OF ELECTRICAL BANK

This Architectural Drawing Is AutoCAD 2D drawing of REINFORCED CONCRETE PROTECTION PLATE FOR MECHANICAL PROTECTION OF ELECTRICAL BANK. PROVIDE A SECTION 14AWG GALVANIZED STEEL WIRE GUIDE, INSIDE THE CONDUCT. THE COMPRESSION STRENGTH OF THE CONCRETE USED IN THE CONFECTION OF THE PLATE, BANK PROTECTION FOR DUCT, MUST NOT BE LESS THAN 150kgf/cm², IN 28 DAYS,  THE DEPTH OF THE CONDUCTS MAY BE ADEQUATE TO THE HEIGHT OF THE THROUGHWAY BOXES USEd,  DIMENSIONS IN MILLIMETERS;For More details And information Down;loads the drawing file.
