ROD OF GROUNDING DETAILS OF ELECTRIC FENCE.

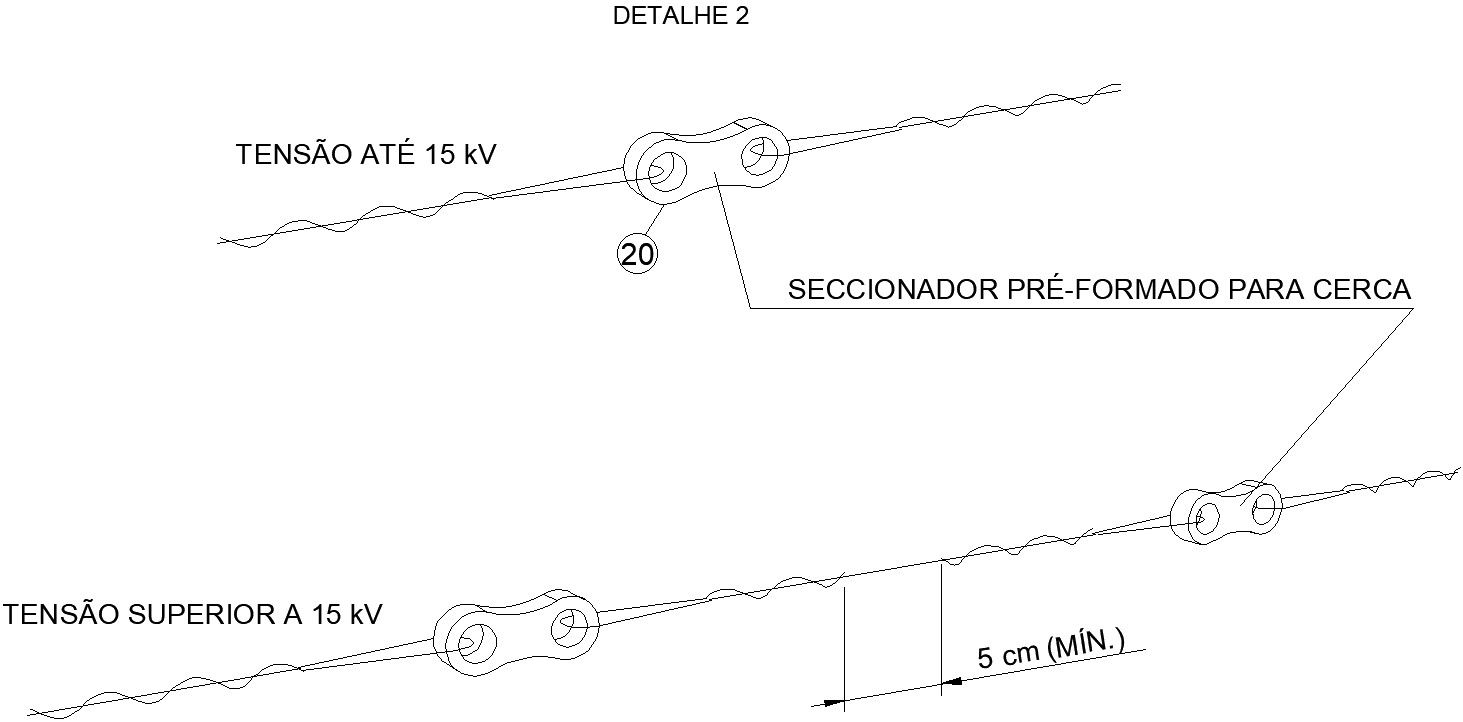

This Architectural Drawing is AutoCAD 2D drawing of Rod of Grounding details of electric fence. A general rule is to install a minimum of 3 feet of ground rod per joule of output capacity. A 15 joule fence charger will require a minimum of 45 feet of ground rod. These rods must be installed at least 10 feet apart from each other. To ensure ground rods come in contact with enough soil moisture to complete the circuit, best practice is to install 90 cm (3') of ground rod below the water table for every joule of output provided by the energizer. For more details and information download the drawing file.
