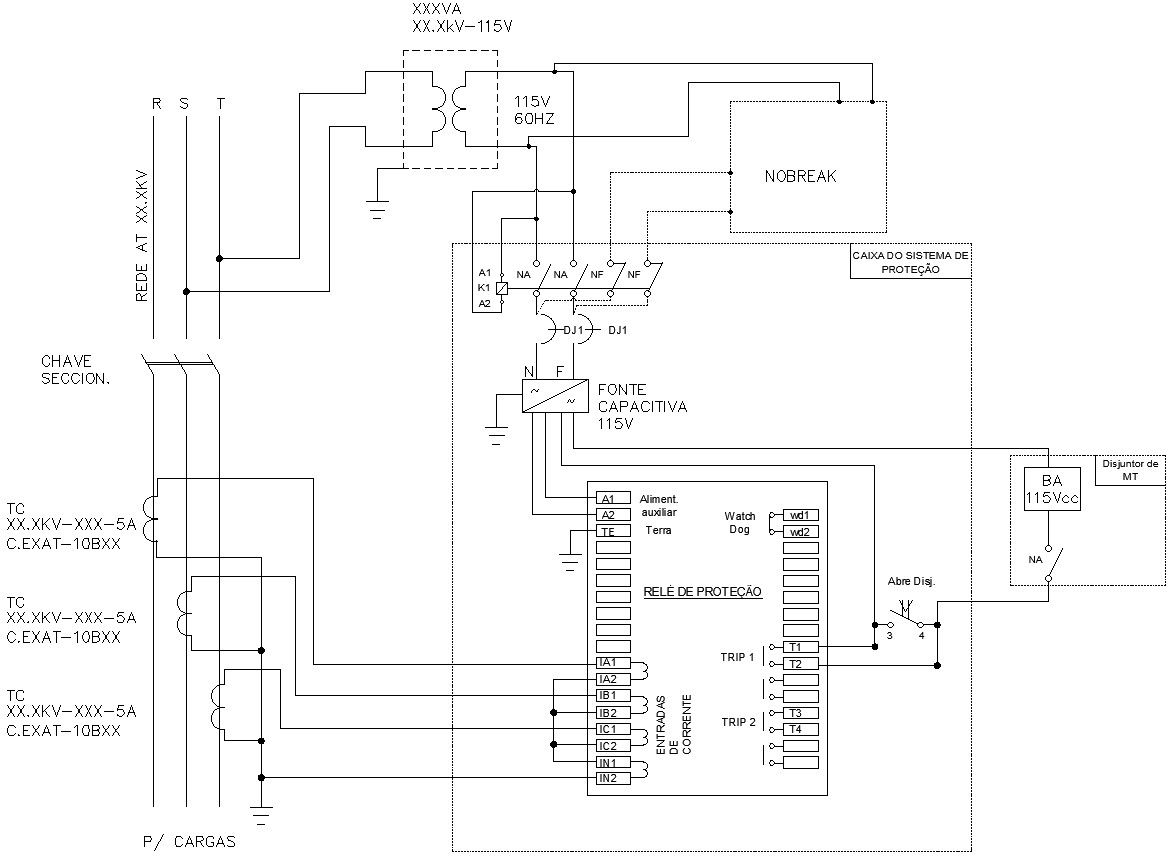

TRIFILE CONNECTION DIAGRAM OF THE SECONDARY PROTECTION SYSTEM.


Description

This Architectural Drawing is AutoCAD 2D drawing of Trifile connection Diagram of the secondary Protection System. In this Drawing, the current wiring must have a 4 mm² section and the voltage wiring must have a 2.5 mm² section, with insulation according to the way of installing, two capacitive sources can be used instead of one with two outputs, the DJ1 circuit breaker must have a maximum rated current of 16 A, type IEC, curve C. like details are mentioned. For more details and information download the drawing file.




File Type: DWG File ID: 254096
