Drawing of electric power supply system in AutoCAD 2D
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

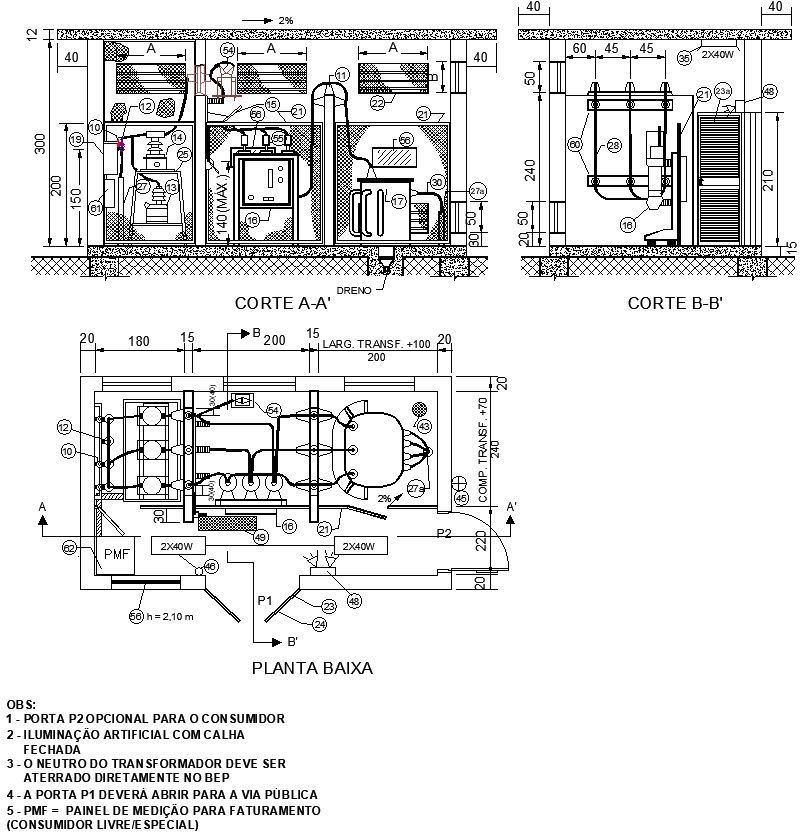

This architectural drawing is Drawing of electric power supply system in AutoCAD 2D. There were given cross section AA', cross section BB' and the blueprint of plan. There were given optional 2 is for consumer, artificial lighting with truck closed, the neutral of the transformer must be directly grounded to the BEP, door P1 must open to the public road, PMF is for billing measurement panel. For details and information download the drawing file.
