Different types of piling.

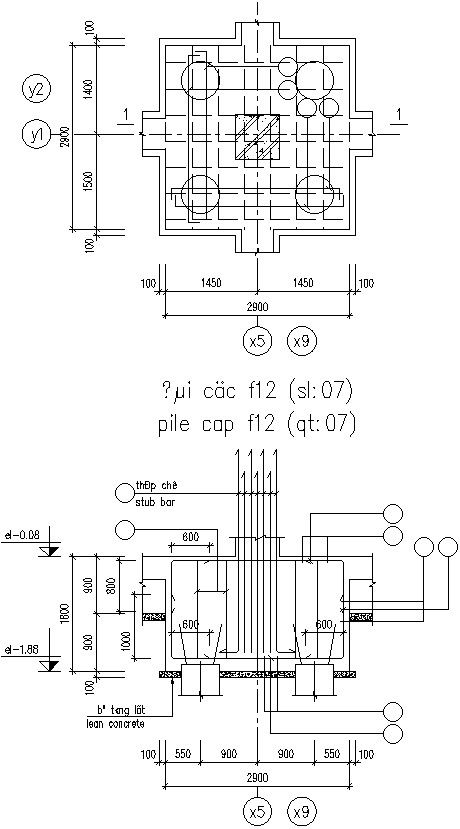

This Architectural Drawing is AutoCAD 2d Drawing of different types of piling. Types of piling are, CFA - Continuous Flight Auger bored piling. The highly versatile CFA piling technique has become the most widely used bored piling system in the UK, Steel piling application and advantages,Driven sheet piles, Rotary bored piling, Steel sheet piling, Silent piling. Pipe piles usually consist of seamless, welded or spiral welded steel pipes of wall thickness in the range of 0.109” to 2.500” (2.8 – 63.5 mm). The piles are available in 8” (203.2 mm) to 48” (1219 mm) diameters. Common sizes of pipe piles can be considered for loads between 60 kips (267 kN) to over 400 kips (1779 kN). For more details and information download the drawing file.
