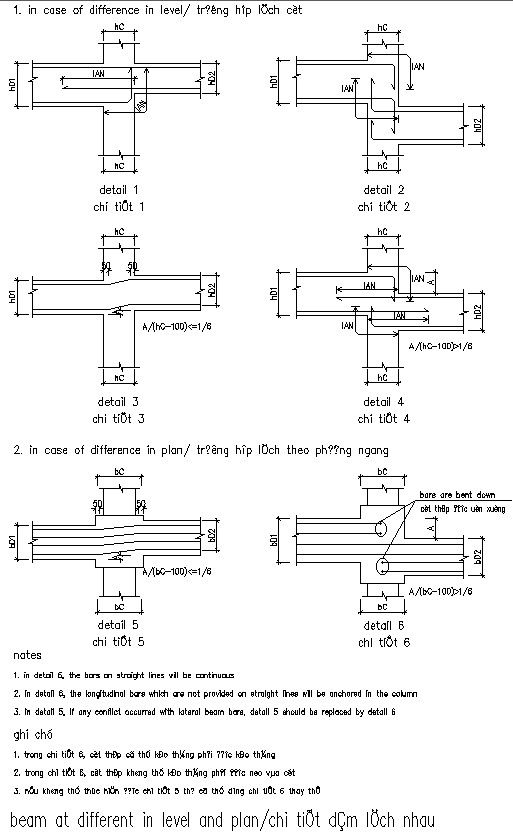

This architectural drawing is Beam at different in level and plan. In this drawing there were given, in detail 6, the bars on straight lines will be continues. In detail 6, longitudinal bar which are not provided on straight lines will be anchored in the column. In detail 5, if any conflict accured with lateral beam bars, detail 5 should be replaced by details 6. For detail and information download the drawing file.
