Concrete beam penetration detail
Tags
#Concrete beam penetration detail#concrete beam#design of beam#2D drawing#AutoCAD drawing
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

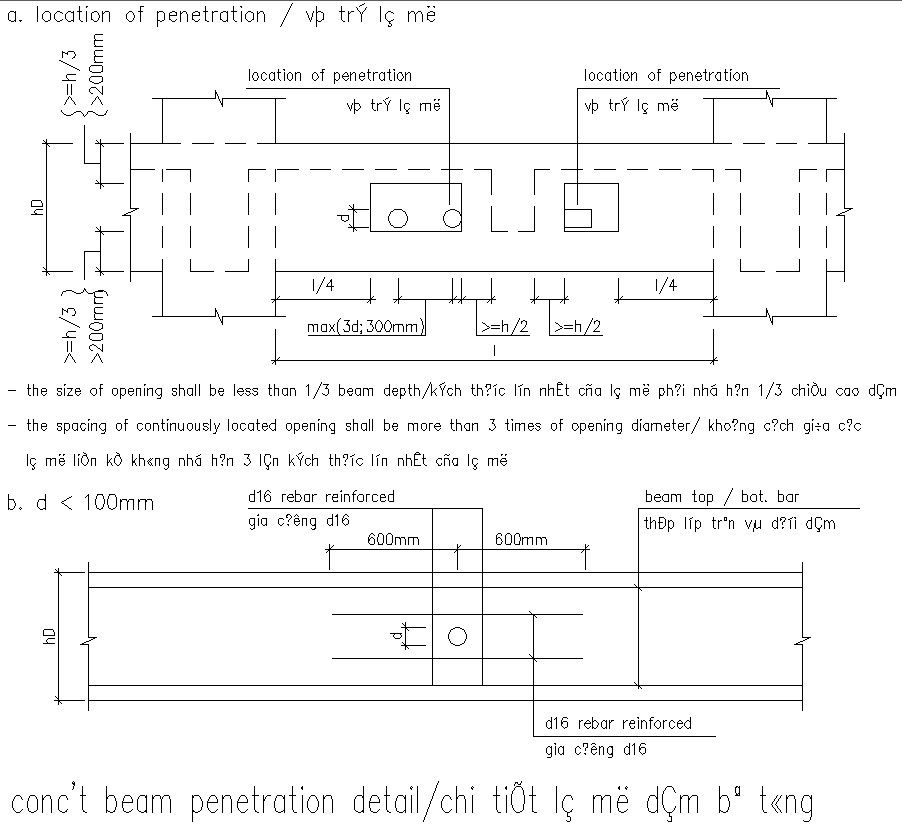

This architectural drawing is Concrete beam penetration detail. In this drawing there were given location of penetration. The size of the opening shall be less than 1/3 beam depth. The spacing of continuously located opening shall be more than 3 times of opening diameter. For more details and information download the drawing file.
