Description

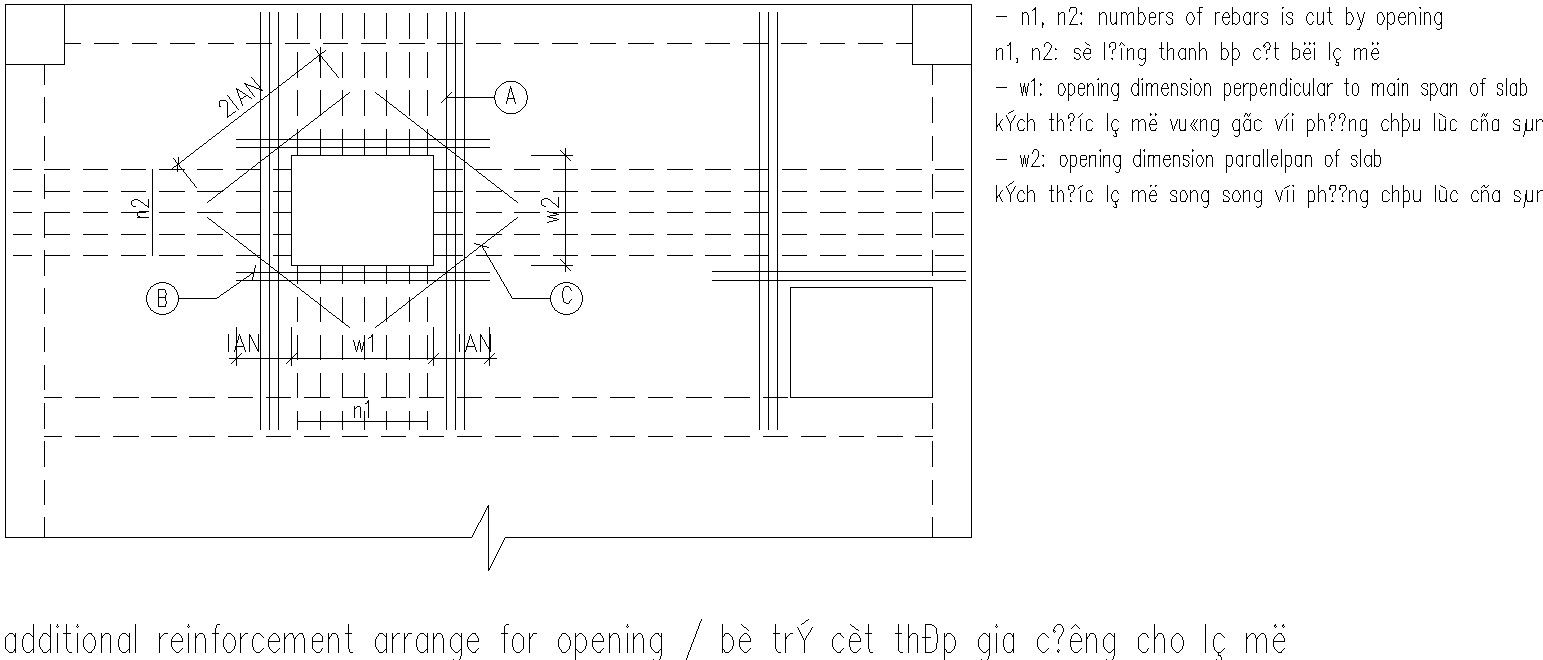

This architectural drawing is Additional reinforcement arrange for opening. In this drawing there were given n1 and n2 is for nos. for reinforcement is cut by opening. W1 is for opening dimension for perpendicular to main span of slab. For more details and information download the drawing file.
Uploaded by:
viddhi chajjed
