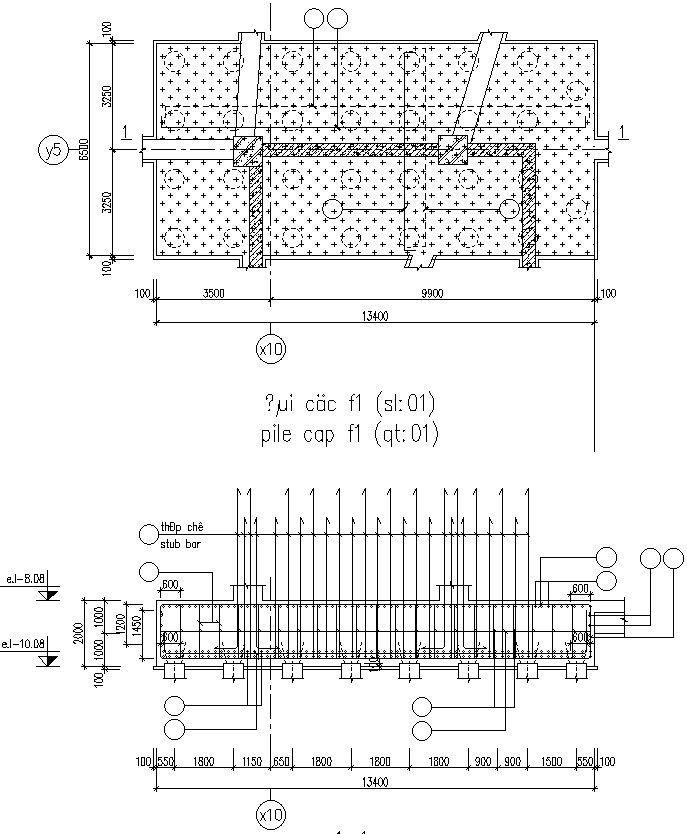

Details of Pile cap and stub column on Reinforcement.

This Architectural drawing is AutoCAD 2d drawing of Details of Pile cap and stub column on Reinforcement. The union of the superstructure through socket, in the pile cap is accomplished by embedding a part of column (embedded length) in an opening of the foundation element that enables its holder. Usually the socket is built on the block, but is also used pile caps with embedded or partially embedded socket. For more details and information download the drawing file.
