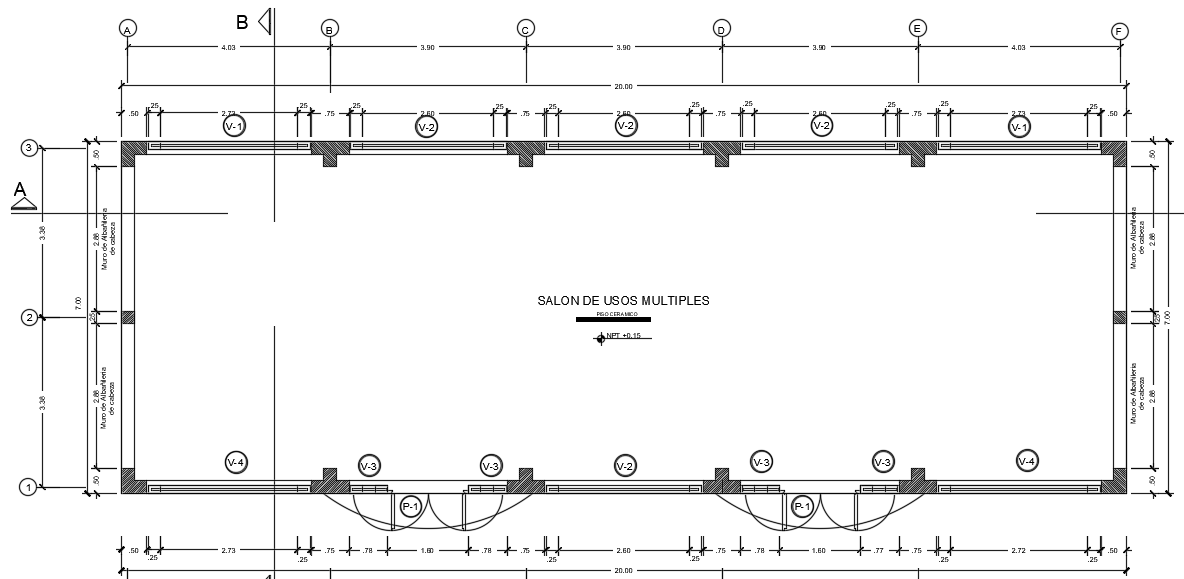

20x7m college multipurpose area plan is given. This is a single story building. Here, column, beam, window, and door locations are mentioned. This can be used for multipurpose.
