Details of Diagonal member used in Frame Structure.

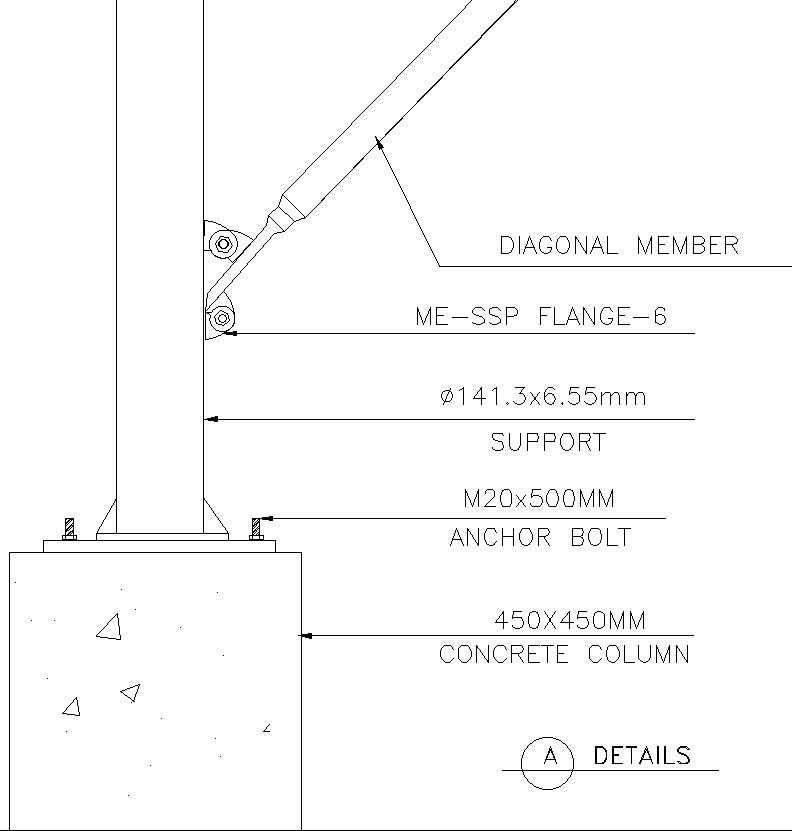

This Architectural Drawing is AutoCAD 2d drawing of a Details of Diagonal member used in Frame Structure.  Frames are structures composed of vertical and horizontal members,  The vertical members are called columns, and the horizontal members are called beams. Diagonal bracing is a structural component of just about any building. It provides lateral stability, preventing the collapse of walls, decks, roofs and many other structural elements. For more details and information download the drawing file.
