Reinforcement base plate details in AutoCAD, dwg file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

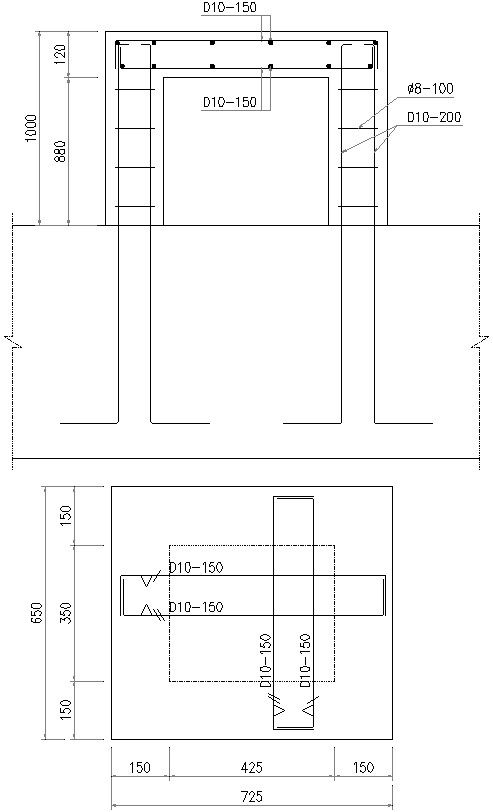

This Architectural Drawing is AutoCAD 2d drawing of Reinforcement base plate details in AutoCAD, dwg file. When a steel column is supported by a footing it is necessary for the column load to be spread over a sufficient area to keep the footing from being overstressed . Loads from steel columns are transferred through a steel base plate to large area of the footing . For more details and information download the drawing file.
File Type:
DWG
File Size:
1.9 MB
Category::
Construction
Sub Category::
Concrete And Reinforced Concrete Details
type:
Gold
Tags
#Reinforcement base plate details in AutoCAD#dwg file.
