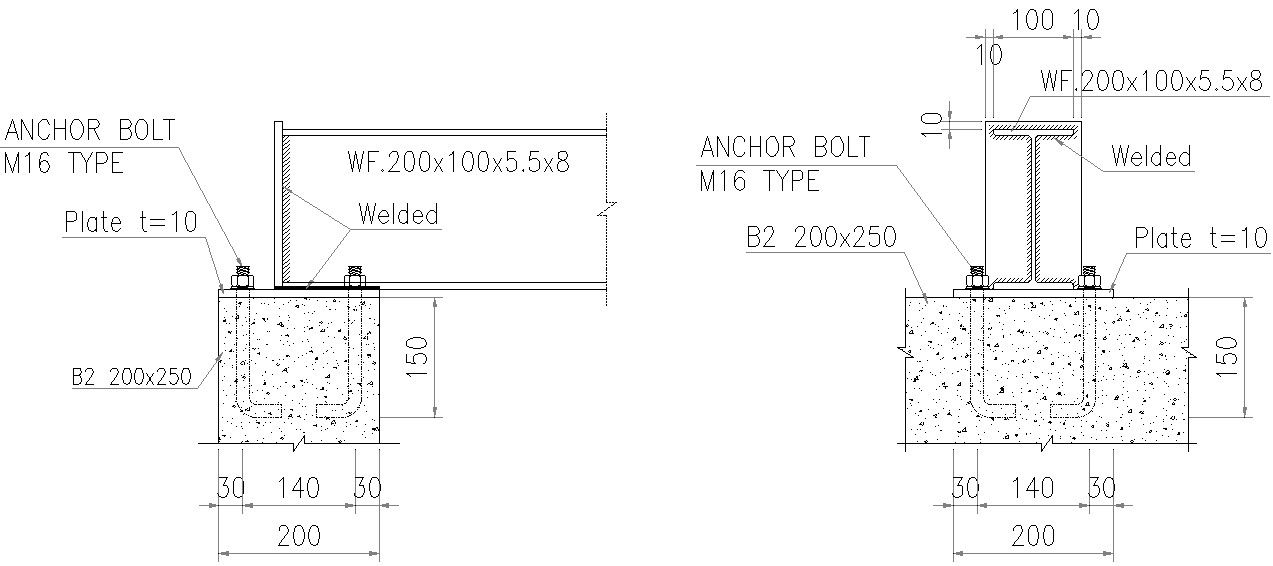

This Architectural Drawing is Anchor bolt installation details in Foundation baseplate in AutoCAD, dwg file. The bolts shall be located in the middle third of the width of the plate. A nut and washer shall be tightened on each anchor bolt. There shall be not fewer than two bolts per plate section with one bolt located not more than 12 inches (305 mm) or less than seven bolt diameters from each end of the plate section.
