Hinge detail drawing in AutoCAD 2D, dwg file, CAD file

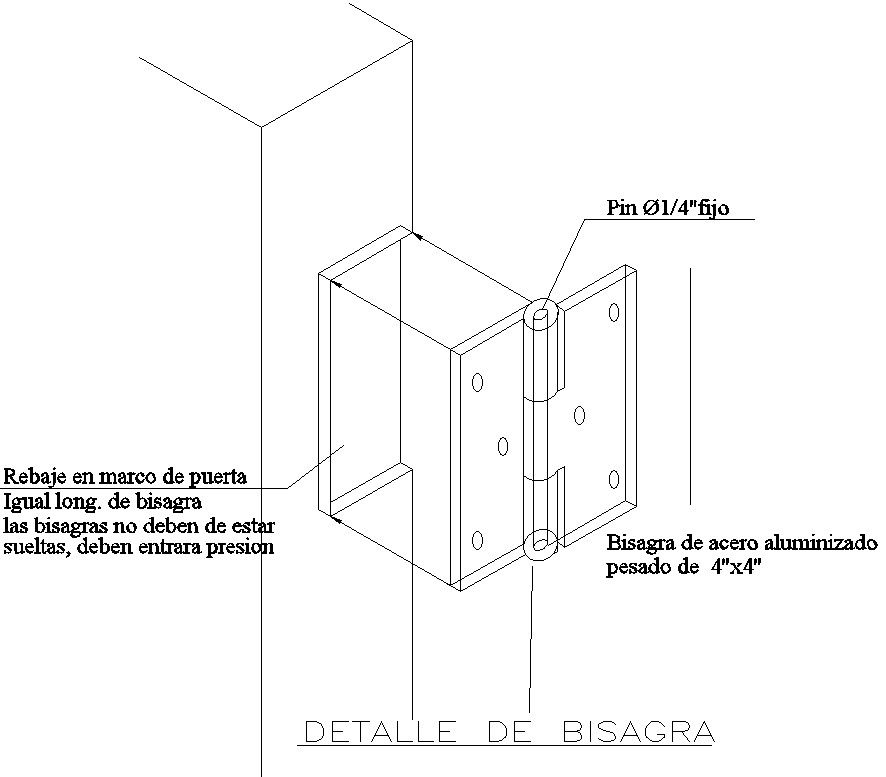

This architectural drawing is Hinge detail drawing in AutoCAD 2D, dwg file, CAD file. In this drawing there were 4"x4" heavy aluminized steel hinge, fixed pin ∅1/4", Rebate in door frame Same length of hinge the hinges must not be loose, they must enter pressure, etc. are given with details. For more details and information download the drawing file.
