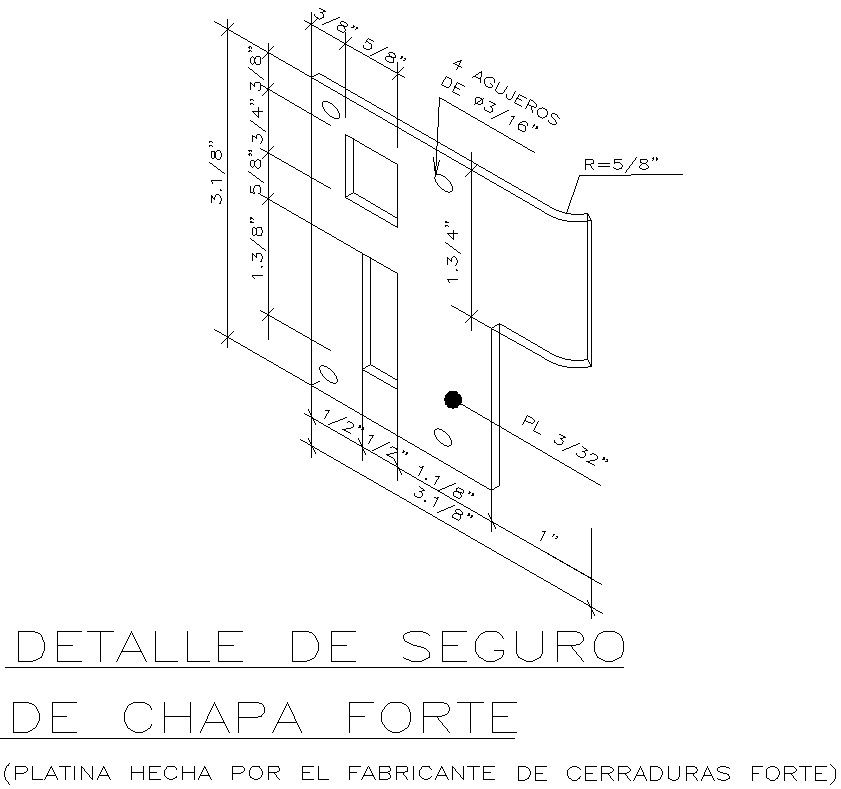

In this drawing there were Strong plate insurance detail in AutoCAD 2D, dwg file, CAD file. In this drawing there were 4 ∅3/16" holes, R=5/8", SCALE : 1/2, etc. are given with details. For more details and information download the drawing file.
