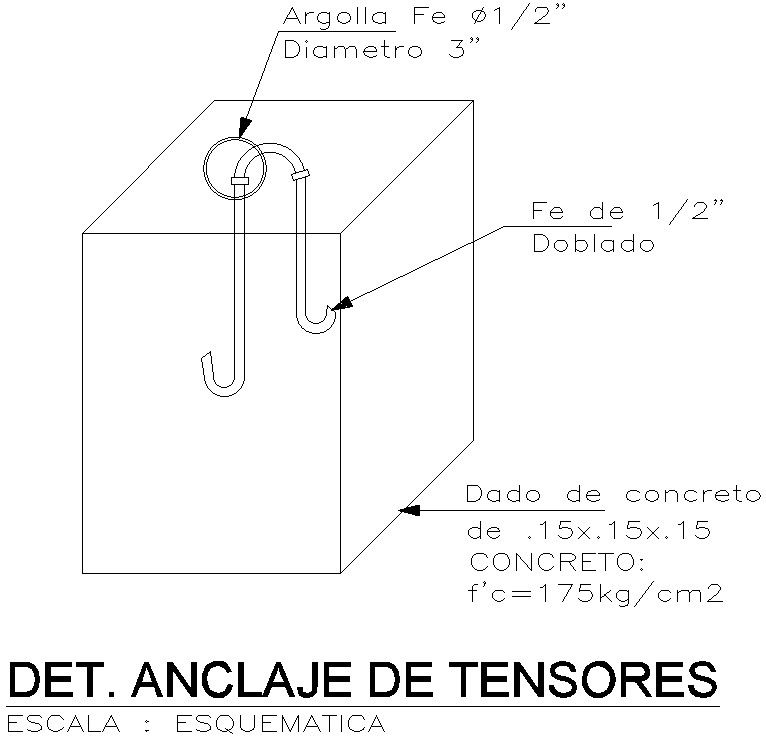

This architectural drawing is DET. ANCHORAGE OF TENSIONERS design in detail AutoCAD drawing, dwg file, CAD file. In post-tensioning systems, anchorages are utilized to secure the ends of the tendons. Depending on the system provider, many designs are available, but in essence they are steel blocks through which one or more strands travel and are secured by wedges. Either the strands individually or collectively can be tightened. For more details and information download the drawing file.
