CLAMP DETAIL in AutoCAD 2D drawing, dwg file, CAD file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

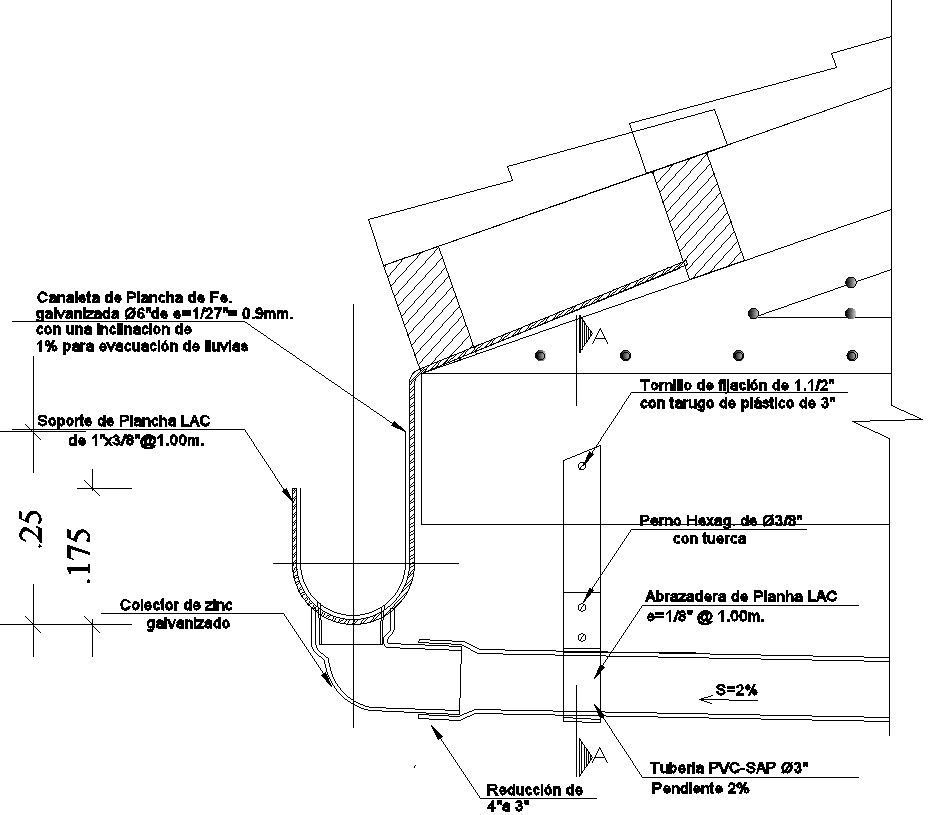

This architectural drawing is CLAMP DETAIL in AutoCAD 2D drawing, dwg file, CAD file. In this drawing is LAC Plate Support 1"x3/8"@1.00m, holes for the fixing screws in expansion bolts embedded in the slab is given. For more details and information download the drawing file.
File Type:
DWG
File Size:
8.9 MB
Category::
Mechanical and Machinery
Sub Category::
Mechanical Engineering
type:
Gold
Tags
#CLAMP DETAIL in AutoCAD 2D drawing#dwg file#CAD file#2D drawing#2D plan#2D design#AutoCAD plan#AutoCAD design#AutoCAD drawing
