Stern view of sailboat AutoCAD drawing
Description

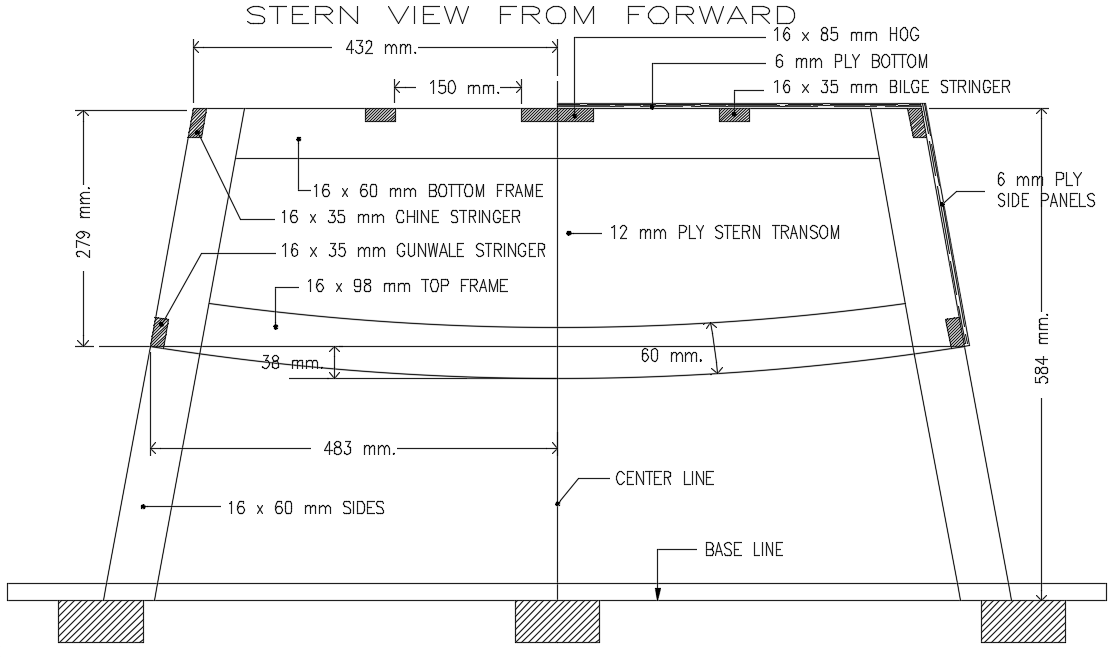

Stern view of sailboat AutoCAD drawing is given in this file. Bottom and top frames are provided. Centerline and baselines are marked. 160x60mm bottom frame, 16x98m top frame, 16x35mm gunwale stringer, 16x35mm chine stringer, 6mm ply bottom, 16x35mm bilge stringer, 16x60mm sides, 6mm ply side panels, and other details are mentioned.
