2 air valve installation valve detail in AutoCAD 2D drawing, dwg file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

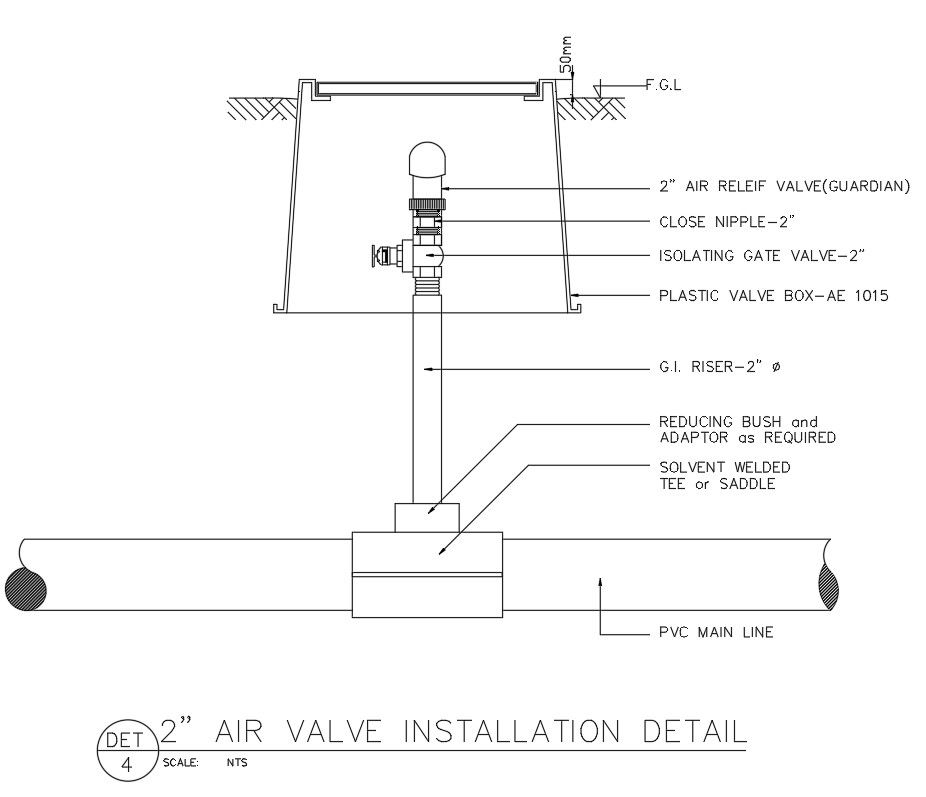

This architectural drawing is a 2" air valve installation detail in AutoCAD 2D, dwg, and CAD files. Air release valves assist in expelling trapped air, ensuring smooth water flow in pipelines and efficient irrigation system operation. When internal pressure inside the water pipe builds up, the Air Release Valve opens, causing this to occur. For more details and information, download the drawing file.
