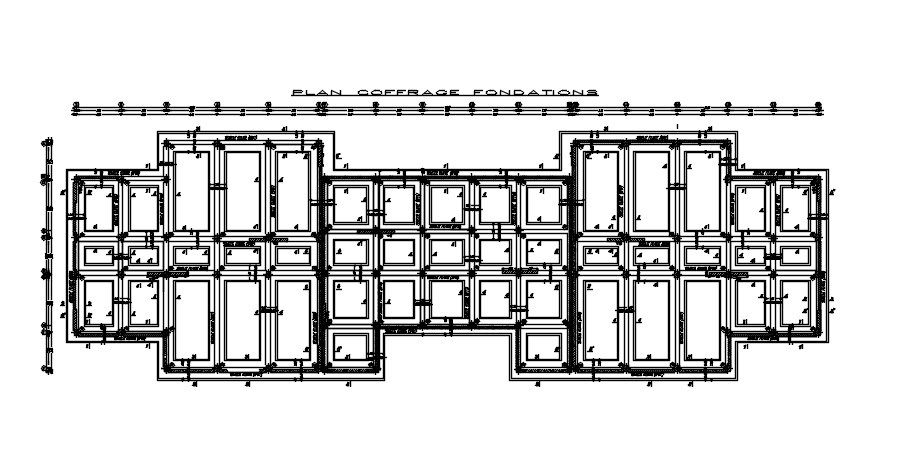

This architectural drawing is 2D design of foundation formwork plan in detail AutoCAD drawing, CAD file. It is made up of vertically structured upright timbers to which sheeting sheets or pre-assembled sheeting boards are fastened on the concrete side. The upright timbers are corner to corner supported by sheets on both sides. Whalers are horizontally set on spikes at each third upright timber. For more details and information download the drawing file. Thank you for visiting our cadbull.com.
