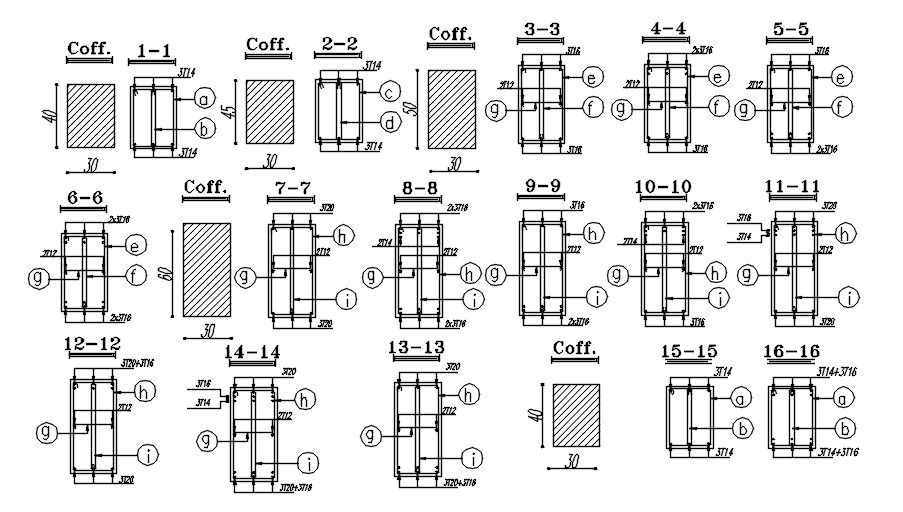

TYPICAL SECTION ON BEAM (30X60) design with details in AutoCAD 2D drawing, CAD file, dwg file

This architectural drawing is a TYPICAL SECTION ON BEAM (30X60) design with details in AutoCAD 2D drawing, CAD file, and dwg file. A beam is made up of the following steel reinforcements: At the tension and compression faces, longitudinal reinforcing is used. Vertical stirrups and/or bent-up longitudinal bars for shear reinforcement. When the depth of the web in a beam exceeds 750 mm, side face reinforcement in the web is given. For more details and information download the AutoCAD drawing file from our website.
