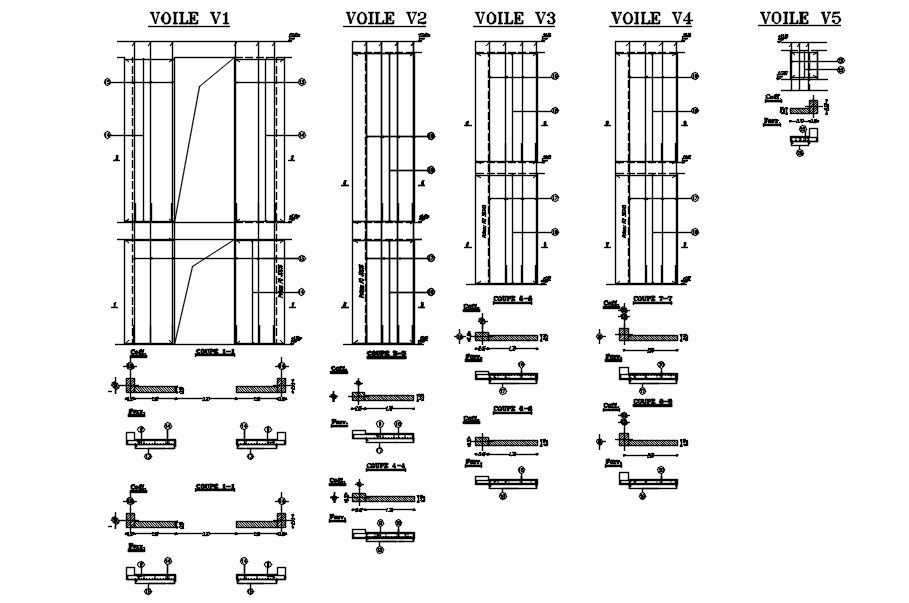

This architectural drawing is Different elevations and sections of walls with reinforcement details in AutoCAD 2D drawing, CAD file, and dwg file. A compression member is designed into a reinforced concrete wall. When a beam is needed and the load from the slab is significant or when the thickness of a masonry wall is constrained, reinforced concrete walls are used. When reinforcement is less than 0.4%, reinforced concrete walls are categorized as plain concrete walls. For more details and information download the drawing file.
