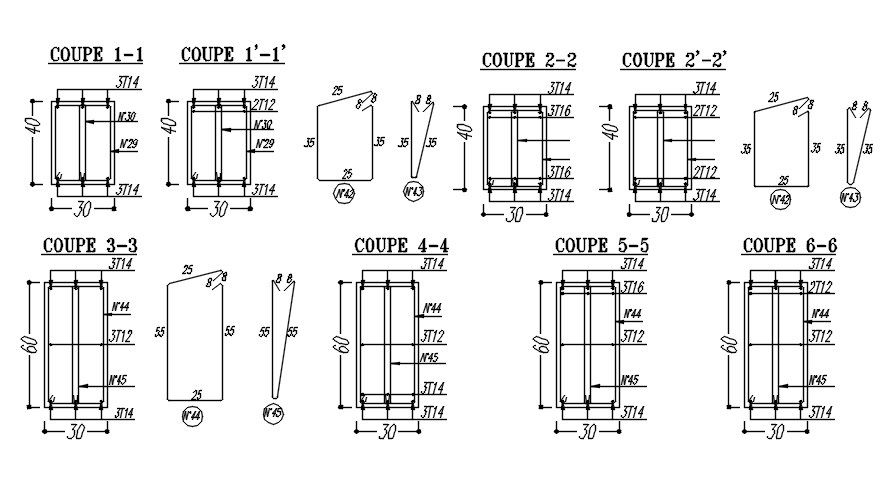

2D AutoCAD Beam Design Showing Cross Section and Reinforcement Layout

This AutoCAD DWG file offers a comprehensive 2D design of a beam, focusing on the cross-section and detailed reinforcement layout. It clearly illustrates the placement of steel bars, spacing, and structural dimensions, making it an essential reference for civil and structural engineers. The drawing ensures accuracy in construction planning, highlighting how reinforcements are arranged within the beam to provide strength and stability. Ideal for engineering documentation, teaching, and practical project implementation.
