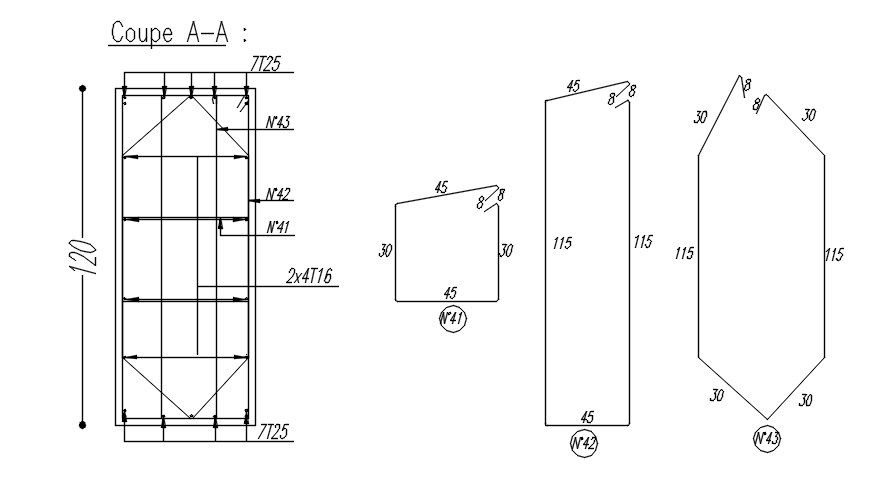

This architectural drawing is a Section of the wall with reinforcement details in AutoCAD 2D drawing, CAD file, and dwg file. A reinforced concrete wall is intended to act as a compression member. Reinforced concrete walls are utilized when a beam is not available and the load from the slab is heavy, or when the masonry wall thickness is limited. When reinforcement is less than 0.4%, the concrete wall is characterized as plain. For more details and information download the drawing file.
