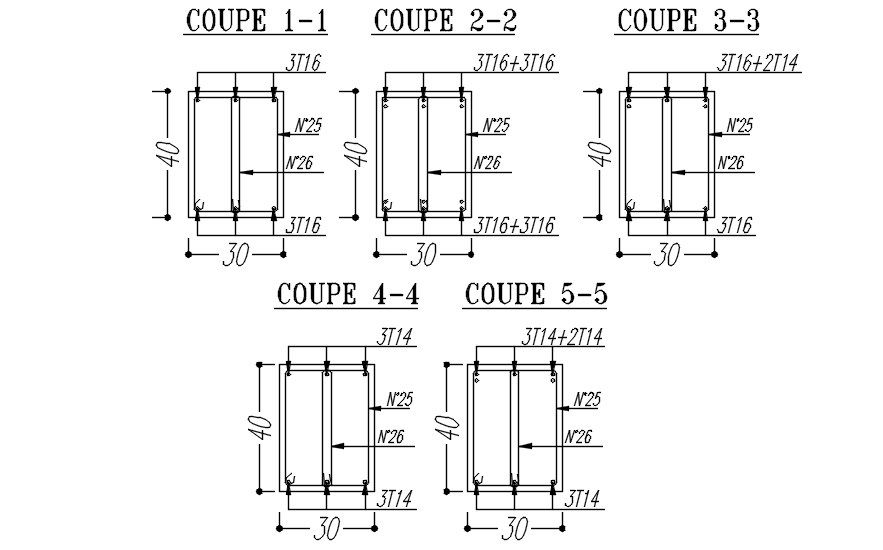

Cross section view of reinforcement bar layout plan and section wise design in Autocad DWG file.


This is an Architectural layout plan of the reinforcement bar cross section view. Here mention coupe 1-1,2-2,3-3,4-4,5-5 section and their dimension;using 3T16,3T16+16,3T16+2T14,3T14,3T14+2T14. For more detailed information visit our pages and Download Autocad 2D DWG files.

File Type: DWG File ID: 262050

Uploaded by:

K.H.J Jani
