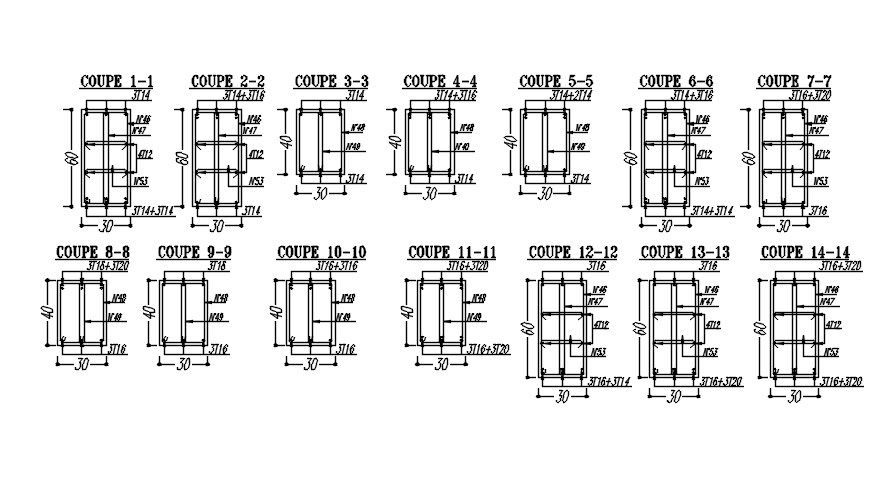

Cross section of transverse reinforcement bar layout plan design 2DAutocad DWG file.

This layout is a structural component of the reinforcement cross-section bar. ferrous bar structure to resist movement or deformation of the structural member. Clear span length coupe 1-1=60, coupe2-2=60, coupe 3-4-5=40, coupe 6-6=60, coupe 8-9-10-11=40 coupe 12,13=60. and mention their detailed dimension. For more details information visit our pages and Download the 2D Autocad files.
