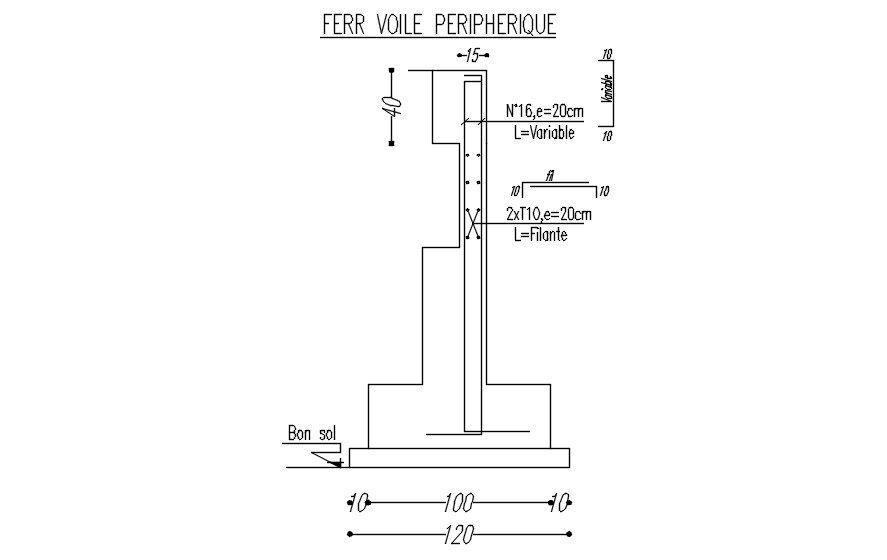

Reinforcement footing single bar cross section line plan layout drawing design in 2D Autocad DWG file.

This is an architectural plan layout of the Reinforcement footing bar cross-section line plan layout drawing design. Here we mention bed slope length=120,2T10,e=20, L=FILL; upper portion N*16,e=20 thickness=15. For more details information check the pages of cadbull.com & Download the 2DAutocad DWG file.
