AutoCAD Beam Sections with Reinforcements Details 2D Drawing

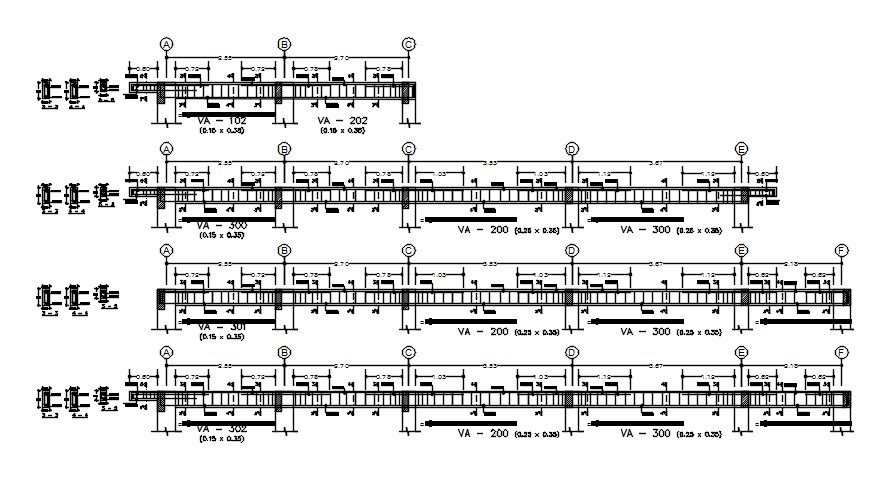

This AutoCAD beam sections drawing presents a detailed 2D representation of multiple beam sections with complete reinforcement details for structural construction. The drawing includes clearly labeled beam sections such as 3-3, 4-4, and 5-5, along with beam spans identified from A to F. Precise dimensional information is provided, including beam lengths between grid points, making it easier to understand load distribution and structural continuity. Reinforcement placement, bar spacing, beam depth, and sectional alignment are accurately shown to support RCC design and execution requirements.

The 2D AutoCAD DWG file is highly useful for civil engineers, structural engineers, site supervisors, and construction professionals involved in residential or commercial projects. This beam reinforcement drawing can be easily edited, scaled, and coordinated with column layouts, slab drawings, and foundation plans. By downloading this file through a Cadbull subscription, users gain access to professionally drafted CAD drawings that help reduce site errors, improve reinforcement accuracy, and ensure smooth coordination between design and construction using standard AutoCAD software.
