Detail of the wind tie drawing
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

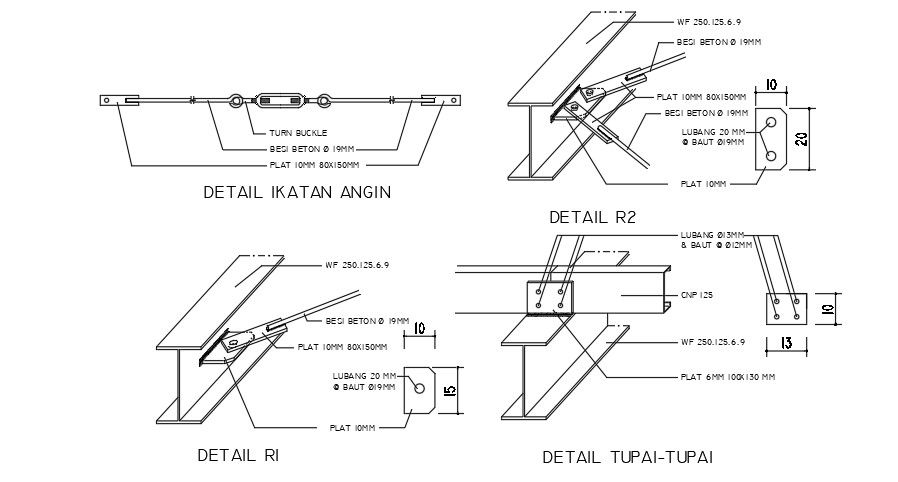

Detail of the wind tie drawing is given in this AutoCAD 2D DWG file. The wind ties are designed to provide the ties for trusses and rafter likely to be subject to the hind winds. 19mm diameter of the steel bar is provided. The dimension of the plate is 10x80x150mm. Bolt connection details are given in this drawing section.
File Type:
DWG
File Size:
312 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Tags
#Detail of the wind tie drawing#wind ties#wind ties drawing#wind ties section drawing#wind tie
